Before you read. One server in a rack of twelve rejects every login. The accounts are fine, the password is correct, and the same credentials work on the other eleven.
Somebody checks the certificate on it. The certificate is valid, issued last month, expiring next year.
What is wrong with that server, and why does the fault look like two different problems at once?
Time is infrastructure in the same way addressing is: nothing mentions it until it is wrong, and then several unrelated things fail at once in ways that point everywhere except at the cause.
Some words you will need
- NTP
- Network Time Protocol. How almost every machine on a network learns what time it is.
- stratum
- How many steps a server is from a reference clock.
- reference clock
- Something that knows the time without asking: GPS, a radio signal, an atomic standard.
- offset
- How far this machine's clock is from the time it was told.
- skew
- The rate at which a clock drifts away, as opposed to how far out it currently is.
- PTP
- Precision Time Protocol. The same job to microseconds, with help from the switches.
What breaks without this
Authentication fails on one machine. Kerberos rejects a ticket outside a five minute window by default, so a clock off by six minutes stops logins on that machine alone.
A valid certificate is reported as invalid. Because validity is a pair of dates and the machine checking them believes the wrong date.
Logs cannot be put in order. Two machines describing the same incident with timestamps that disagree by ten seconds cannot be correlated, and the incident review becomes an argument about which one to believe.
Stratum counts hops
The number gets read as a rating. It is a distance.
Building the hierarchy is what makes the number concrete. Here is a server told to serve from its own clock, a second synchronising to it, and a third synchronising to that.
A client synchronising from a server that is itself two steps from a reference clock. What stratum does the client report?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology ntp-lan
# what the bottom of the chain thinks, and where it got it
$ ip netns exec leaf chronyc -h 10.0.0.3 sources
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^* 10.0.0.2 6 0 377 1 +13us[ +19us] +/- 48us
$ ip netns exec leaf chronyc -h 10.0.0.3 tracking | head -5
Reference ID : 0A000002 (10.0.0.2)
Stratum : 7
Ref time (UTC) : Thu Aug 13 16:57:29 2026
System time : 0.000004045 seconds fast of NTP time
Last offset : +0.000006726 seconds
# and the server it is asking, one step further up
$ ip netns exec mid chronyc -h 10.0.0.2 tracking | head -2
Reference ID : 0A000001 (10.0.0.1)
Stratum : 6Nobody typed 6 or 7 anywhere. The leaf asked its source what stratum it was, added one, and that is the whole algorithm.
The other fields are worth reading once. Reach is an octal history of the last
eight exchanges, so 377 is all eight successful and anything else is a source
that is missing answers. The offset is how far this machine’s clock currently
sits from the time it was told, in this case a few microseconds, and it is the
number that matters rather than the stratum.
If you already run time servers: why a low stratum is not the same as an accurate clock
Stratum counts distance from a reference and it is routinely read as a quality score, which it is not.
A stratum 2 server on a congested link with asymmetric routing can be considerably less accurate than a stratum 3 server on a quiet local network. The protocol estimates offset by assuming the path takes the same time in each direction, and topic 70’s asymmetric routing breaks that assumption directly: if one direction is slower, the calculated offset is wrong by half the difference, and nothing in the stratum number reflects it.
What actually predicts accuracy is the reported offset and dispersion, the jitter of the measurements, and how many sources agree. A client with four sources that agree closely is in a good position regardless of their stratum. A client with one source is trusting it completely, which is why the guidance is always several servers rather than one, and why two is the worst number: with two disagreeing sources there is no way to tell which is wrong.
Which makes the practical check a comparison rather than a number. Ask a client what it thinks of each of its sources and look for the one that disagrees with the others. That is a fault. A high stratum is not.
What a wrong clock looks like
The reason time is worth a topic is that its failures do not look like time failures. Here is the same certificate file, verified three times, with nothing different except what the clock says.
A certificate that is valid today, checked against three different clock settings. At which of them does it stop being valid?
# Debian 13 (trixie), x86_64
$ openssl x509 -in ca.pem -noout -subject -dates; echo; for t in 2026-03-01 2025-12-01 2026-08-01; do printf "clock says %s: " "$t"; openssl verify -attime $(date -u -d "$t" +%s) -CAfile ca.pem ca.pem 2>&1 | tail -2 | tr "\n" " "; echo; done
subject=CN=Lab CA
notBefore=Jan 1 00:00:00 2026 GMT
notAfter=Jun 30 00:00:00 2026 GMT
clock says 2026-03-01: ca.pem: OK
clock says 2025-12-01: error 9 at 0 depth lookup: certificate is not yet valid error ca.pem: verification failed
clock says 2026-08-01: error 10 at 0 depth lookup: certificate has expired error ca.pem: verification failed One file, three answers. “Certificate is not yet valid” and “certificate has expired” are the same fault seen from either side, and neither message mentions the clock, because from the verifying machine’s point of view the certificate genuinely is outside its validity window.
That is the fault in the scenario at the top of the page, and it explains why it looked like two problems. Authentication fails because Kerberos and most token schemes reject anything outside a tolerance window, five minutes by default, which is short enough that an unsynchronised clock reaches it in weeks. Certificates fail because validity is a pair of dates. Both are consequences of one number being wrong on one machine.
The diagnostic is one command, and it is worth reaching for early. Compare the clock on the machine that is failing against a machine that is not. If they disagree by more than a few seconds, stop investigating the certificate.
If you already investigate incidents: the drift that makes logs unusable, and the direction that hides it
Clock problems are usually met while investigating something else, and the reason they are so expensive is that they corrupt the one thing an investigation depends on.
Correlating an event across a firewall, a switch and two servers means putting their logs in order, and that ordering is only meaningful if their clocks agree. A machine an hour out does not produce obviously wrong entries; it produces entries that sort into the wrong place, so the sequence reads as though the effect preceded the cause. An investigator who does not check the clocks first can spend a long time building a theory around an ordering that never happened.
The direction matters too. A clock running fast puts an event in the future, which is sometimes noticeable. A clock running slow puts it in the past, where it merges quietly into a period already reviewed and is far less likely to be spotted.
Which is why checking clock agreement is a first step in an investigation rather than a detail, and why time synchronisation is treated as security infrastructure rather than housekeeping. It is also the argument for aggregating logs, from topic 40: a collector stamping arrival time gives a second ordering that does not depend on every device being right.
Where microseconds are needed
NTP over a network holds machines within a few milliseconds of each other, which is far more than enough for logs, authentication and certificates.
Precision Time Protocol is the answer when it is not enough. IEEE 1588, targeting microseconds or better, and it gets there by a different route: the switches take part. A transparent clock measures how long a message spent inside it and writes that into the message, so the accumulated delay through the network is known rather than estimated.
That is the practical difference to carry. NTP is software on the endpoints and works over any network. PTP needs the network equipment to support it, which makes it a design decision rather than a configuration one.
The places it is used are specific: financial trading, where regulators require timestamps accurate to microseconds; broadcast, where video and audio streams have to stay aligned; industrial control and power distribution; and mobile networks, where base stations must agree closely enough not to interfere.
If you already work on networks: why time is a security dependency, what NTP had instead of authentication for thirty years, and the two failure modes of a time source
Time is the one dependency almost every security control shares, which makes an attacker who can control it unusually well placed.
Move a machine’s clock backwards far enough and a revoked certificate becomes valid again, because revocation lists have their own validity windows and an expired certificate becomes unexpired. Move it forwards and sessions expire, tokens become invalid and one-time codes stop matching. Neither needs any access to the cryptography.
NTP had almost nothing to protect against this for most of its life. The symmetric key authentication in the protocol required a shared secret per server pair, which nobody deployed at scale, and the public pool has always been unauthenticated. RFC 8915 defines Network Time Security, which uses TLS to establish keys and then authenticates the time exchanges themselves. Support is now in the main implementations and deployment is early, and it is worth knowing by name because it is the answer to the obvious question about the pool.
A time source fails in two ways and they need different responses. It can stop answering, which is loud: clients notice, log it, and keep running on their own oscillators, drifting slowly. Or it can answer confidently with the wrong time, which is silent and much worse, because clients will follow it.
This is why clients are configured with several sources rather than one. With three or more, an implementation can discard the outlier and keep the agreeing majority, which is exactly what the algorithm in RFC 5905 does. With two, a disagreement is unresolvable and most implementations refuse to step rather than guess. With one, whatever it says is the truth.
That argues for a specific arrangement: at least three internal servers, each synchronising upward to several external sources, with everything else pointing at all three. It costs nothing and it converts the silent failure into a detectable one.
Across platforms
Every platform runs a time client by default and none of them run the same one. The question is the same on all three and it has two halves: which server does this machine ask, and is it actually asking. Those are separate settings, and a machine can hold a perfectly good server address while synchronising to nothing at all.
| Task | Linux | Windows | macOS |
|---|---|---|---|
| Which server this machine asks | chronyc sources |
w32tm /query /source |
systemsetup -getnetworktimeserver |
| Whether it is synchronised | timedatectl |
w32tm /query /status |
systemsetup -getusingnetworktime |
| Query a server without touching the clock | chronyc ntpdata |
w32tm /stripchart /computer:<host> |
sntp <host> |
On Windows, w32tm answers both halves. The status output is the one to read twice,
because it puts the stratum, the poll interval and the last successful sync on one
screen.
# Microsoft Windows Server 2025 Datacenter, version 10.0.26100.0
> w32tm /query /source
VM IC Time Synchronization Provider
# and the state of that synchronisation, offset included
> w32tm /query /status
Leap Indicator: 0(no warning)
Stratum: 4 (secondary reference - syncd by (S)NTP)
Precision: -23 (119.209ns per tick)
Root Delay: 0.0001121s
Root Dispersion: 0.0100002s
ReferenceId: 0x564D5450 (source IP: 86.77.84.80)
Last Successful Sync Time: 8/20/2026 10:47:23 PM
Source: VM IC Time Synchronization Provider
Poll Interval: 6 (64s)The source line is the interesting part and it is the ordinary case rather than a curiosity. This machine is a virtual machine and it is taking time from the hypervisor’s integration service instead of asking anything over the network. Stratum 4 puts it four steps from a reference clock. On a virtual fleet that is usually what you want, and it is also why a clock fault on a VM is sometimes a host problem with no network involvement whatsoever.
On macOS the two halves are two commands, and this runner shows exactly the split worth watching for.
# macOS 26.5.2, arm64
$ sudo systemsetup -getnetworktimeserver
Network Time Server: 0.pool.ntp.org
# and whether it is actually using it
$ sudo systemsetup -getusingnetworktime
Network Time: OffIt knows where it would ask and it is not asking. Anybody who ran only the first command would have reported the configuration as correct, which it is, and missed the fault entirely.
The third row of the table is sntp on macOS, and it is the one to reach for on a
machine you are diagnosing rather than fixing, because it queries a server and prints
the offset without touching the clock. It is not captured above: outbound NTP is blocked
on the runner’s network, and a failed query prints roughly a hundred lines of protocol
dump per attempt.
Topic 02 covers reading the clock itself on each platform. Any two machines whose clocks disagree by more than a few seconds have found the fault.
Prove it
Compare two clocks. Any two machines you have. If they agree to the second, the mechanism on this page is working and you have never had to think about it.
Break one on purpose. In a virtual machine, set the clock forward by a year and try to browse anywhere. The errors are the ones on this page, and none of them will mention the time.
Find what your machine is synchronising to. Then find out what that server is synchronising to. Most people cannot answer the second question about their own network.
What trips people up
1. Reading stratum as a quality rating
It counts hops from a reference clock. A nearby stratum 2 server is usually a better source than a distant stratum 1 one, because accuracy is dominated by the variability of the round trip.
2. Thinking stratum 0 is a server
It is the clock itself, and it has no network interface. Stratum 1 is the first thing you can query.
3. Treating a certificate error as a certificate problem
The same file is valid or invalid depending on what the verifying machine thinks the date is. Check the clock before the certificate.
4. Missing that Kerberos has a tolerance window
Five minutes by default. A machine drifting quietly reaches that in weeks, and the symptom is that logins fail on one host while working everywhere else.
5. Configuring one time source
A source that stops answering is obvious. A source that answers with the wrong time is silent, and with a single source there is nothing to compare it against.
6. Expecting PTP to be a drop-in improvement
It reaches microseconds by having the switches measure their own delay, so it needs the network equipment to support it. NTP is software on the endpoints.
Work it through
The one server in twelve that rejects every login while its certificate is valid.
The shape of the report is the clue, and it is worth noticing before touching anything. Two unrelated subsystems are failing on one machine and neither is failing anywhere else. Authentication and certificate validation have almost nothing in common except that both compare something against the current time.
So the first command is not about either of them. Read the clock on that server and read it on one of the eleven that work. If they differ by minutes, the investigation is over and the rest is repair.
Assume they do. Now there are two questions, and only the second one matters in a week’s time.
The immediate one is why the clock drifted, and there are three usual answers: the time client is not running, it is running and configured with a source it cannot reach, or it is running and reaching a source that is itself wrong. The first two are visible in the client’s own status output, which will say plainly that it has no reachable sources. The third is the one to suspect if several machines drifted together rather than one, and it is why the deeper panel argues for more than one source.
The second question is why nobody knew. A machine’s clock does not jump; it drifts, over weeks, through a range where nothing complains at all. It passed through one minute of error with no symptom, and then somewhere past five minutes Kerberos started refusing, which means the fault existed and was invisible for most of its life. Offset is a metric like any other, topic 40’s argument applies to it, and almost nobody monitors it.
And a note on the certificate. Somebody checked it and found it valid, which was correct and was also a dead end, because they were reading the dates on a machine with a working clock. Reading the same certificate on the failing server would have produced the error message and pointed straight at the answer. The general version: when a fault is on one machine, run the diagnostic on that machine.
Try it
Set a clock wrong and read the errors. Nothing teaches this faster than seeing “certificate is not yet valid” on a certificate you issued yourself an hour ago.
Look at the offset your machines report. Not whether they are synchronised, which is a yes or no, but by how much. That number is the one that goes wrong slowly.
Count your time sources. If the answer is one, you have a single point of failure that fails silently, which is the worst combination available.
Check yourself
What does a stratum number count, and why is a low one not automatically better?
It counts steps away from a reference clock. Stratum 0 is the clock itself, stratum 1 is a server with one attached, and every server that synchronises to another claims one higher.
It is a distance rather than a quality rating. Accuracy over a network is dominated by the variability of the round trip, so a stratum 2 server a few milliseconds away will usually hold a machine closer to the truth than a stratum 1 server on the other side of the world.
A server reports that a certificate is not yet valid. The certificate was issued a month ago. What is wrong?
The clock on that server. Validity is a pair of dates in the certificate, and a machine that believes the date is earlier than the notBefore field will report exactly that, because from its point of view the certificate genuinely has not started yet.
Nothing in the message mentions the time, which is what makes the fault confusing. The same file verifies without complaint on a machine whose clock is right.
Why does clock drift produce authentication failures on one machine while other machines are fine?
Because the tolerance is checked per machine. Kerberos rejects tickets outside a window that defaults to five minutes, so the machine whose clock has drifted past that refuses, and every machine still inside the window carries on normally.
The credentials are correct and the directory is fine, which is why the report arrives as an account problem rather than a time problem.
What does PTP do that NTP does not, and what does it require in exchange?
It reaches microsecond accuracy rather than millisecond, by having the network equipment take part: a transparent clock measures how long a message spent inside the switch and records it, so the delay through the network is measured rather than estimated.
The cost is that the switches have to support it, which makes it a network design decision. NTP is software on the endpoints and works across any path, which is why it is what almost everything uses.
Why configure three time sources rather than one?
Because a time source fails in two ways. It can stop answering, which clients notice and log, or it can answer confidently with the wrong time, which they will follow.
With three or more, an implementation can discard a source that disagrees with the others and keep the majority. With two, a disagreement cannot be resolved. With one, whatever it says becomes the truth, and the silent failure has nothing to catch it.
References
- RFC 5905 - IETF, NTP version 4, including stratum, the selection algorithm and the meaning of stratum 16. Free. Accessed 2026-08-13.
- RFC 8915 - IETF, Network Time Security. Free. Accessed 2026-08-13.
- RFC 5280 - IETF, the certificate profile, for the validity period the capture tests against. Free. Accessed 2026-08-13.
- IEEE 1588 - IEEE, Precision Time Protocol. Paid. Accessed 2026-08-13.
- chrony documentation - The implementation used to build the hierarchy in the capture. Accessed 2026-08-13.
- Windows Time service tools and settings - Microsoft, for the w32tm parameters in the comparison table, including what /query /source, /query /status and /stripchart each report. Free. Accessed 2026-08-20.

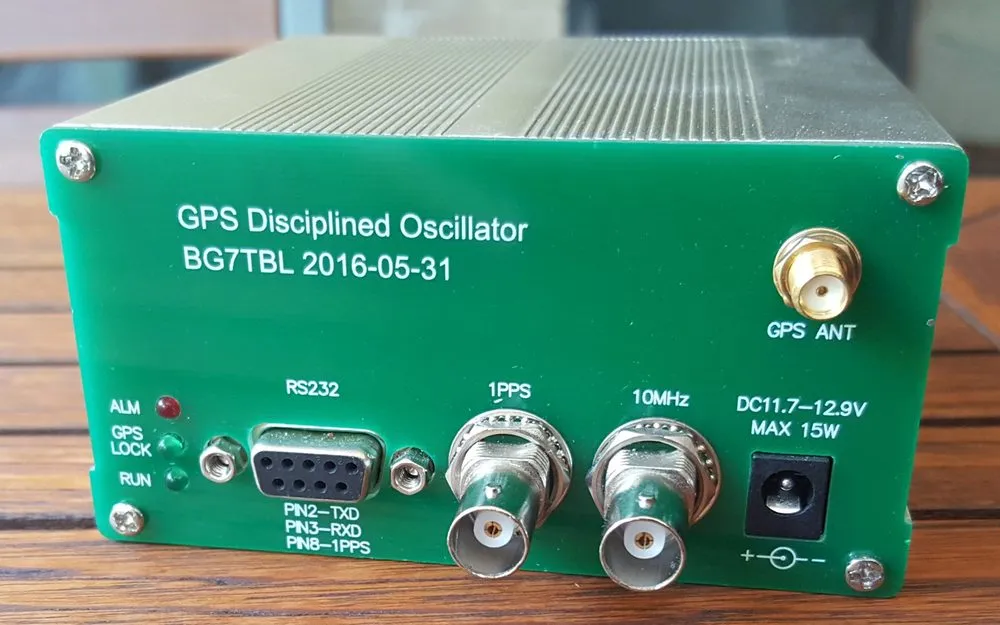

Pictures. A freely licensed file from Wikimedia Commons, downloaded and served from this site rather than linked across to somebody else’s server. Resized and otherwise unaltered.
- GPS disciplined oscillator unit by RoundupResistance, CC0.
Where the output came from. The hierarchy ran on the ntp-lan namespace
topology through blog/scripts/netlab.sh, with three real chrony instances
synchronising to each other. One thing in it is a fiction and is worth naming: the
top server is told local stratum 5, which makes it willing to serve time from
its own clock without a reference attached, because a lab cannot have a caesium
standard in it. Everything below that is genuine, and the stratum numbers in the
output were counted by the software rather than configured. The certificate block
came from a Debian 13 container through blog/scripts/capture.sh, using a
certificate with fixed validity dates so the answers do not depend on the day the
capture ran, and openssl verify -attime to ask the question as if at three
different moments. The Windows and macOS blocks are real machines through the capture
workflow, running
time-sync.ps1
and
time-sync.sh.
