Before you read. You have taken over a network. There is no diagram, the spreadsheet is four years old, and the person who built it left before you arrived. Two of the addresses in the spreadsheet do not answer and three devices are answering that are not in it.
Nobody can tell you what is connected to what.
Where do you start, and what can you find out without touching anything?
Most networks are inherited rather than built, and the first job on an inherited network is to find out what it is. This topic is the tools for that: the ones that ask the network, the ones that ask the devices, and the physical ones for the questions software cannot answer.
Some words you will need
- host discovery
- Finding which addresses on a range have something answering at them. A list of what exists, before any question about what it does.
- port scan
- Asking one host which of its ports accept connections. What a machine offers, rather than whether it is there.
- neighbour discovery
- Devices announcing themselves on each link so their neighbours know what is on the other end. Layer 2, and it does not cross a router.
- management address
- The address a device says to reach it on, which is often not the address you found it at.
- toner probe
- Two pieces: one puts a signal on a cable, the other finds which cable is making the noise. The answer to "which of these four hundred is it".
What breaks without this
Work is done blind. A change to a network nobody has mapped is a change whose blast radius is unknown, which is how a small maintenance window becomes an incident.
The documentation stays wrong. A diagram nobody can rebuild is a diagram that only ever gets further from the truth, and every person who inherits it after you starts from the same place.
A scan becomes an incident. Discovery tools look exactly like reconnaissance, because they are the same thing done by somebody with permission, and running one without that permission is how a routine afternoon becomes a conversation with security.
What is on this segment
The first question is the simplest: which addresses have something answering at
them. The topology is
sockets.sh.
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology sockets
# who is on this segment. no documentation, no inventory, one command
$ ip netns exec h2 nmap -sn 10.0.0.0/29
Starting Nmap 7.95 ( https://nmap.org ) at 2026-08-19 15:53 UTC
Nmap scan report for 10.0.0.1
Host is up (0.00011s latency).
MAC Address: 02:00:00:00:00:01 (Unknown)
Nmap scan report for 10.0.0.3
Host is up (0.000032s latency).
MAC Address: 02:00:00:00:00:03 (Unknown)
Nmap scan report for 10.0.0.2
Host is up.
Nmap done: 8 IP addresses (3 hosts up) scanned in 27.31 secondsEight addresses asked, three answering, and each one reported with its hardware address. That last detail is worth more than it looks on an inherited network, because the first three bytes of a hardware address are assigned to a manufacturer, so a list of them is a rough inventory of who made what before anybody logs into anything.
Note the third entry has no hardware address next to it. That is the scanning machine itself, which knows it is up without asking, and it is a small reminder that a scan is taken from somewhere and the result depends on where.
The exam names Nmap directly rather than describing a category, which is unusual for this objectives document and worth knowing: it is the tool the questions can assume.
If you already scan regularly: the devices a scan does not find
A sweep finds what answers, and there are several categories that exist and do not, which matters when the scan is being used as an inventory.
A device configured to ignore the probe used will not answer. A host firewall dropping everything looks absent. A device that is powered down at the moment of the scan is absent, which for anything on a schedule means the scan needs to run more than once and at different times. And a device on a VLAN the scanning machine cannot reach is absent regardless of anything about the device.
So the honest description of a scan result is a lower bound rather than an inventory. That matters when it is being used to answer whether anything unexpected is present, because absence of evidence is doing a lot of work in that sentence.
The complementary source is the switch, which knows every hardware address it has learned on every port and does not care whether the device answers anything. Comparing the switch’s forwarding tables against the scan finds the devices that are present and silent, which is precisely the population worth being curious about. That comparison takes a few minutes and regularly finds something nobody could account for.
And what is that machine running
The second question is what one of those devices offers.
A single host on that segment, scanned for open ports. It runs one service. What does the scan say about the other thousand ports it tried?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology sockets
# and what is one of them running
$ ip netns exec h2 nmap -Pn 10.0.0.1
Starting Nmap 7.95 ( https://nmap.org ) at 2026-08-19 15:54 UTC
Nmap scan report for 10.0.0.1
Host is up (0.0000040s latency).
Not shown: 999 closed tcp ports (reset)
PORT STATE SERVICE
8000/tcp open http-alt
MAC Address: 02:00:00:00:00:01 (Unknown)
Nmap done: 1 IP address (1 host up) scanned in 13.12 secondsOne open port out of a thousand, and the line above it is the interesting one. “999 closed tcp ports (reset)” is topic 73’s lesson arriving from the other direction: the scanner learned those ports were closed because each one answered with a reset, and a reset is an answer. A port that had been filtered rather than closed would have produced silence, and the scanner would have reported it differently because it means something different.
So a port scan is not a list of doors. It is a list of answers, and the three possible answers are the same three from the capture topic: something accepted, something refused, or nothing came back at all.
The service name next to the port, http-alt, is a guess. It comes from a local file
mapping port numbers to the service conventionally found on them, and nothing verifies
it. Anything can listen on any port, so treat the name as a hint about what somebody
probably intended and not as a fact about what is running.
Before you run any of this: the permission question, and what a scan can do by accident
Discovery tools and reconnaissance tools are the same tools. What separates the two is authorisation, and that is not a formality.
Get it in writing, from somebody who can give it. On a network you administer, your own change process is usually enough. On a customer’s network, or a network your employer does not own, or a cloud provider’s address space, permission has to come from the party that operates it, and “I assumed it was fine” is not a defence. Many jurisdictions treat unauthorised scanning as an offence in its own right regardless of whether anything was harmed, and cloud providers publish their own rules about testing inside their platforms.
Scan windows and scope belong in that authorisation too. Which ranges, which ports, which hours, and who to call if something goes wrong. That paperwork exists because of the second reason, which is technical.
A scan can break things. Most modern equipment shrugs it off. Older embedded devices, industrial controllers, building management systems, medical equipment and printers frequently do not, and a full port scan against one of them can hang it or reboot it. A network with unknown devices on it, which is exactly the network this topic is about, is the worst case: you cannot know which of them is fragile until after you find out.
And it will be noticed. Any monitoring worth having flags a host that opens connections to a thousand ports on a thousand addresses, so an unannounced scan generates a security incident, wastes somebody’s evening, and makes your own team’s detection look untrustworthy the next time it fires. Telling the security team before you start costs one message and turns an alert into a confirmation that their tooling works.
The practical version of all of this: announce it, scope it, start gently on ranges you know, and treat a device that stops responding during a scan as your responsibility.
Asking the devices about each other
Scanning tells you what exists. It does not tell you what is plugged into what, and that is the part a diagram needs.
The devices already know. Every switch and router can announce itself on each of its links, saying what it is, which of its own ports the announcement came out of, and how to manage it. A neighbour reading those announcements knows exactly what is on the other end of each cable, and the union of everybody’s view is the map.
Here is the middle router being asked what it can see, after the three of them have
been left to announce themselves for half a minute. The topology is
trace-path.sh.
Three routers left to announce themselves for half a minute, and the middle one asked what it can see. Can you draw the network from its answer?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology trace-path
# each router runs the discovery daemon, each with its own run directory so that
# three of them on one kernel do not share a control socket
$ ip netns exec r1 unshare --mount sh -c "mkdir -p /run/lldp/r1; mount --bind /run/lldp/r1 /run; lldpd -I r1-r2; sleep 40" &
$ ip netns exec r3 unshare --mount sh -c "mkdir -p /run/lldp/r3; mount --bind /run/lldp/r3 /run; lldpd -I r3-r2; sleep 40" &
$ sleep 2
# and the middle router is asked what it can see, without anybody telling it
$ ip netns exec r2 unshare --mount sh -c "mkdir -p /run/lldp/r2; mount --bind /run/lldp/r2 /run; lldpd -I r2-r1,r2-r3; sleep 30; lldpcli show neighbors summary"
-------------------------------------------------------------------------------
LLDP neighbors:
-------------------------------------------------------------------------------
Interface: r2-r1, via: LLDP
Chassis:
ChassisID: mac 3a:cd:c1:d1:b5:af
SysName: 2b28e0679782
Port:
PortID: mac 3a:cd:c1:d1:b5:af
PortDescr: r1-r2
TTL: 120
-------------------------------------------------------------------------------
Interface: r2-r3, via: LLDP
Chassis:
ChassisID: mac 26:01:4a:3b:90:b8
SysName: 2b28e0679782
Port:
PortID: mac 26:01:4a:3b:90:b8
PortDescr: r3-r2
TTL: 120
-------------------------------------------------------------------------------Two neighbours, one on each side, and each entry names the far device’s port:
r1-r2 on the interface facing r1 and r3-r2 on the one facing r3. Nobody
configured that and nobody drew it. The devices said it.
Two honest limits on this lab. The system name is the same in both entries, because every namespace here shares one container hostname, and on real equipment each device reports its own. And these announcements are layer 2, so they stop at a router and you get one map per broadcast domain rather than one map of an estate.
The exam names the neighbour discovery protocols as a category. What matters for a question is what they reveal, which is the device on the other end, the port it used, its capabilities and its management address, and what they do not, which is anything beyond the next hop.
If you already run neighbour discovery: what it tells anybody who plugs in
The protocol is genuinely useful for rebuilding a map and it announces the same information to whoever is listening, which includes anything plugged into an access port.
An announcement typically carries the device’s name, its model, its software version, the port the announcement came from, and its management address. That is a substantial head start for somebody who has just walked in, and it is broadcast continuously to every port that has it enabled.
The resolution is not to turn it off, because the mapping it provides is worth having. It is to enable it on the links between infrastructure devices and disable it on access ports, which is where the value is zero and the exposure is not. Most platforms allow that per interface, and doing it as part of the access port template costs nothing.
Worth knowing alongside: there are usually two of these protocols available, a vendor one and a standard one, and estates frequently run both without meaning to. Running the standard one everywhere and the vendor one nowhere gives the same map with one protocol to configure and one to disable on access ports, which is a simpler thing to get right consistently.
The four questions a device command answers
The exam names a family of vendor-neutral commands and it is worth learning them as questions rather than as syntax, because the syntax differs by vendor and the questions do not.
Here they are against a real routing stack, which answers them the same way a switch or
router would. The topology is
three-routers-ospf.sh.
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology three-routers-ospf
# the vendor neutral commands, asked of a real routing stack. what interfaces
# does this device have, and what state is each one in
$ ip netns exec r1 vtysh --vty_socket /var/run/frr-r1 -c "show interface brief"
Interface Status VRF Addresses
--------- ------ --- ---------
erspan0 down default
gre0 down default
gretap0 down default
lo up default
r1-h1 up default 10.0.1.1/24
fe80::6cac:9eff:fe1f:ee27/64
r1-r2 up default 10.0.12.1/30
fe80::c8ff:67ff:fe16:7b96/64
r1-r3 up default 10.0.13.1/30
fe80::4c3d:efff:fe2d:657d/64
# what does it know how to reach, and how did it learn each one
$ ip netns exec r1 vtysh --vty_socket /var/run/frr-r1 -c "show ip route"
Codes: K - kernel route, C - connected, L - local, S - static,
R - RIP, O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,
T - Table, v - VNC, V - VNC-Direct, A - Babel, F - PBR,
f - OpenFabric, t - Table-Direct,
> - selected route, * - FIB route, q - queued, r - rejected, b - backup
t - trapped, o - offload failure
IPv4 unicast VRF default:
O 10.0.1.0/24 [110/10] is directly connected, r1-h1, weight 1, 00:00:25
C>* 10.0.1.0/24 is directly connected, r1-h1, weight 1, 00:00:26
L>* 10.0.1.1/32 is directly connected, r1-h1, weight 1, 00:00:26
O>* 10.0.2.0/24 [110/20] via 10.0.12.2, r1-r2, weight 1, 00:00:10
O 10.0.12.0/30 [110/10] is directly connected, r1-r2, weight 1, 00:00:25
C>* 10.0.12.0/30 is directly connected, r1-r2, weight 1, 00:00:26
L>* 10.0.12.1/32 is directly connected, r1-r2, weight 1, 00:00:26
O 10.0.13.0/30 [110/10] is directly connected, r1-r3, weight 1, 00:00:25
C>* 10.0.13.0/30 is directly connected, r1-r3, weight 1, 00:00:26
L>* 10.0.13.1/32 is directly connected, r1-r3, weight 1, 00:00:26
O>* 10.0.23.0/30 [110/20] via 10.0.12.2, r1-r2, weight 1, 00:00:05
* via 10.0.13.2, r1-r3, weight 1, 00:00:05
# and which other routers is it talking to
$ ip netns exec r1 vtysh --vty_socket /var/run/frr-r1 -c "show ip ospf neighbor"
Neighbor ID Pri State Up Time Dead Time Address Interface RXmtL RqstL DBsmL
10.10.10.2 1 Full/- 15.092s 34.919s 10.0.12.2 r1-r2:10.0.12.1 0 0 0
10.10.10.3 1 Full/- 15.092s 34.943s 10.0.13.2 r1-r3:10.0.13.1 0 0 0What does this device have, and is it working? The interface summary: every interface, its state, and its addresses. That is the first command to run on a device you have never seen, and it answers the question topic 67 spent a page on in one screen.
What does it know how to reach, and how did it learn it? The routing table, with a
letter on each line naming the source. C is connected, L is a local address, and O
is OSPF. The > marks the route actually selected, which is topic 23’s rule applied and
printed.
Who is it talking to? The protocol neighbour list. Two adjacencies, both Full,
which means these three routers have agreed on a view of the network and are exchanging
it. An adjacency that is not full is a routing problem that has not become a symptom yet.
And what is it configured to do? The running configuration, which is the fourth of the family and is not shown here because it is long and mostly not interesting. It is the one to capture into a file before you change anything.
Four commands and you know a device you have never logged into: what it has, what it knows, who it talks to, and what somebody told it to do.
The seven the exam writes down, and what each one is asking
Objective 5.5 names seven by name. Four are the questions above. The other three are the same instinct pointed at a switch instead of a router, which is why they read as new commands and are not.
| As the exam writes it | What you are asking for | Where the concept is taught |
|---|---|---|
show interface |
Which ports exist and what state each one is in | Topic 67 |
show route |
What this device knows how to reach, and how it learned it | Topic 21, and topic 23 for which route wins |
show config |
What somebody told this device to do | Topic 37 |
show arp |
Which address this device believes belongs to which MAC | Topic 02, and topic 71 when the answer is wrong |
show mac-address-table |
Which MAC the switch last heard, and on which port | Topic 14, and topic 69 when a port is in the wrong VLAN |
show vlan |
Which ports are in which VLAN, and which ones are trunks | Topics 16 and 17 |
show power |
How much PoE budget is left, and what each port is drawing | Topic 68 |
Not one of those is a string a real device accepts. The evidence is in the capture
higher up this page: the routing stack there answers show interface brief and
show ip route, and would not have understood either of the first two rows of that table.
Every vendor phrases all seven its own way, and some of them have changed their own
spelling between software releases.
So the seven are worth reading as questions rather than as syntax. The question is the
part that transfers to the next device, and the syntax is a ? away on the device itself
once you know what you are asking it for.
The tools that are not software
Some questions cannot be answered from a terminal, and the exam names hardware for them.
A cable tester answers whether each conductor reaches the right pin at the other end. Topic 11 has a photograph of one and topic 66 covers what it can and cannot see, which is the more useful half: continuity yes, crosstalk and marginal performance no.

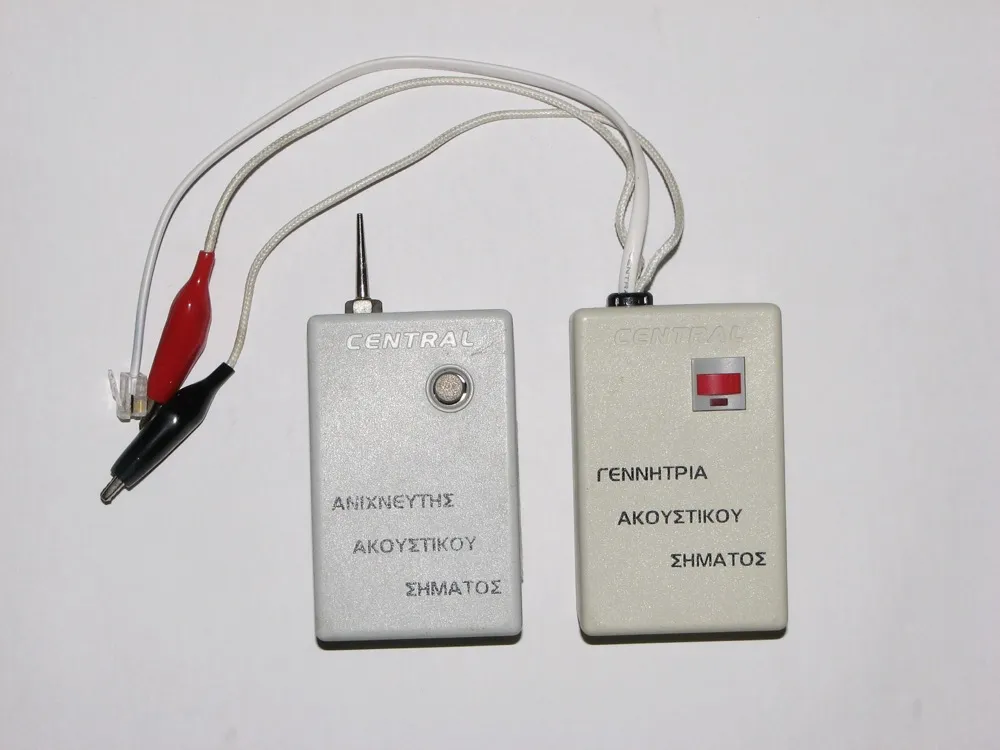

A toner probe answers “which of these is it”. One half injects a signal into a cable and the other half is a wand that squeals when it finds it, which is how a cable is identified in a bundle of four hundred at a patch panel with no labels. On an inherited network this is the tool that turns a spreadsheet full of guesses into a map, and there is no software equivalent.
A speed tester answers what a link actually delivers rather than what it is rated at,
which is topics 75 and 76 in a box. The principle is the same whether the tester is a
handheld unit or iperf3 on two laptops: measure both directions, and measure the path
rather than the link.
A Wi-Fi analyser answers what is on the air, which topic 30 covers and which no wired tool can tell you.
A visual fault locator answers where a fibre is broken, using light you can see. It couples a red laser into one end, and wherever the glass is broken, badly spliced, or bent tighter than it tolerates, light escapes and glows through the jacket at that point. The units Viavi and Fluke build run at 650 nanometres, which is what makes the glow red, and a one milliwatt unit reaches a few kilometres of fibre. Nothing has to be interpreted: either a point on the tray lights up or it does not.
Two things come with it. Never look into the end of a fibre to check whether the locator is working, which is the same rule topic 12 gives for transceivers and for the same reason. And the link has to be down while you use it, because the fibre cannot carry your red light and somebody’s traffic at once.
A tap answers what is genuinely on a link, by sitting in the cable and copying every bit that crosses it to a monitoring port. Topic 39 puts it against a port mirror, and the distinction that matters is that a tap has no opinion: a mirror is a switch doing you a favour with spare capacity, and a busy switch stops doing favours.
The pattern across all six is that they answer physical questions, and a physical question is exactly the kind that a device’s own reports cannot settle, because a device can only tell you about the world as it perceives it through the fault you are chasing.
Across platforms
Host and port discovery is one tool everywhere. The rest differ.
| Task | Linux | Windows | macOS |
|---|---|---|---|
| Find hosts on a range | nmap -sn <range> |
nmap -sn <range>, Test-NetConnection |
nmap -sn <range> |
| Find open ports on a host | nmap <host> |
nmap <host>, Test-NetConnection -Port |
nmap <host> |
| Read neighbour announcements | lldpcli show neighbors |
Get-NetNeighbor for addresses only |
tcpdump filtered to the protocol |
Two things about that table matter more than the commands. Nmap is not installed by default on any of the three, so on a machine you did not build the fallback is the built-in connection tester, which answers one host and one port at a time and is enough for a handful of checks. And only Linux ships a general neighbour discovery client, so on the other two the practical answer is to read the announcements off the wire with a capture, which topic 73 covers, or to ask the switch rather than the host.
On Windows, Test-NetConnection is what you use on a machine that will never have
nmap installed. One host and one port, and the detailed form throws in the name
resolution, the source address and the next hop, which is three separate questions
answered by one command.
# Microsoft Windows Server 2025 Datacenter, version 10.0.26100.0
> Test-NetConnection -ComputerName 1.1.1.1 -Port 443 -InformationLevel Detailed
ComputerName : 1.1.1.1
RemoteAddress : 1.1.1.1
RemotePort : 443
NameResolutionResults : 1.1.1.1
one.one.one.one
MatchingIPsecRules :
NetworkIsolationContext : Internet
InterfaceAlias : Ethernet 3
SourceAddress : 10.1.0.143
NetRoute (NextHop) : 10.1.0.1
TcpTestSucceeded : True
# the neighbour table, which carries addresses and no device names at all
> Get-NetNeighbor -AddressFamily IPv4 | Where-Object State -ne Unreachable | Format-Table IPAddress, LinkLayerAddress, State, InterfaceAlias -AutoSize
IPAddress LinkLayerAddress State InterfaceAlias
--------- ---------------- ----- --------------
255.255.255.255 FF-FF-FF-FF-FF-FF Permanent Ethernet 3
224.0.0.252 01-00-5E-00-00-FC Permanent Ethernet 3
224.0.0.22 01-00-5E-00-00-16 Permanent Ethernet 3
10.1.15.255 FF-FF-FF-FF-FF-FF Permanent Ethernet 3
10.1.0.1 12-34-56-78-9A-BC Reachable Ethernet 3
224.0.0.22 01-00-5E-00-00-16 Permanent vEthernet (nat)
172.18.159.255 FF-FF-FF-FF-FF-FF Permanent vEthernet (nat)
224.0.0.22 Permanent Loopback Pseudo-Interface 1The neighbour table underneath it is the point about discovery on Windows. Every address is there and every hardware address is there. Nothing says what any of those devices is.
On macOS, netcat does the one-port test and arp -an shows the same limitation more
bluntly: every entry begins with a question mark, which is the tool telling you it could
not resolve a name for the address.
# macOS 26.5.2, arm64
$ nc -vz -G 3 1.1.1.1 443
Connection to 1.1.1.1 port 443 [tcp/https] succeeded!
# the neighbour table, addresses and hardware addresses and no names
$ arp -an | head -8
? (192.168.64.1) at a6:77:f3:40:b:64 on en0 ifscope [ethernet]
? (192.168.64.255) at ff:ff:ff:ff:ff:ff on en0 ifscope [ethernet]
? (224.0.0.251) at 1:0:5e:0:0:fb on en0 ifscope permanent [ethernet]Prove it
You have this when you can walk into an undocumented network and produce three things by the end of the day.
# what exists on this range
nmap -sn 10.0.0.0/24
# what one of them offers
nmap -Pn <address>
# what each device says is on the other end of its cables
lldpcli show neighbors summaryThe three artefacts are a list of addresses in use with their manufacturers, a list of what each interesting one is running, and a set of neighbour reports that join into a diagram. None of them requires a password on any device, and all of them are worth storing next to the documentation you inherited rather than in a terminal you will close.
Then, on any device you can log into, run the four questions: what have you got, what do you know, who are you talking to, and what were you told to do. Written down for each device, that is the documentation topic 36 says should have existed.
What trips people up
1. Scanning before asking
A discovery tool and a reconnaissance tool are the same tool, and the difference is written authorisation. Unannounced scans generate security incidents and, on networks you do not administer, can be an offence.
2. Assuming a scan is harmless
Older embedded devices, controllers, printers and medical equipment can hang or reboot under a full port scan, and an undocumented network is exactly where you cannot know which ones those are.
3. Reading the service name as a fact
The name next to a port comes from a local file mapping numbers to conventional services. Anything can listen on any port, so the name is a hint about intent and not a statement about what is running.
4. Expecting neighbour discovery to cross a router
The announcements are layer 2 and stop at the first router, so what you get is one map per broadcast domain. An estate-wide diagram is several of these joined by hand.
5. Trusting the address you found a device at
A device reports a management address and it need not be the one that answered your scan. Multi-homed devices and out-of-band management ports are both common.
6. Forgetting the physical tools exist
No amount of software identifies which of four hundred cables at a patch panel is the one you want. A toner probe does, in a minute, and there is no substitute.
Work it through
The network you have just inherited.
Start by asking permission, even of yourself, and by telling whoever watches the alerts what you are about to do. That costs one message and it is the difference between a discovery exercise and an incident. Agree the ranges and the hours while you are there.
Then find what exists before asking what anything does. A host discovery sweep of the ranges you believe are in use produces a list of addresses that answer, with manufacturer information attached, and it immediately contradicts the spreadsheet in both directions: addresses that do not answer and devices that are not listed. That contradiction is the most valuable output of the first hour, because it tells you how much of the inherited documentation to trust, which is usually less than you hoped.
Then ask the devices about each other rather than scanning harder. Neighbour discovery on the switches gives you the wiring, which is the part no scan can produce, and it gives it to you in a form that joins up: every report names both ends of a cable. Do that per broadcast domain and stitch the results.
Then log into the devices you can and ask the four questions, capturing the running configuration of each before touching anything. At that point you have a network you can reason about, and you have it without having changed a single setting, which is the right order: understand first, and let the first change you make be one you can predict the effect of.
And keep the physical tools in mind for the questions that survive all of that. A device answering at an address you cannot find in any rack is a toner probe problem, not a software one.
Try it
Scan a network you own, and only one you own. Your own home network is the honest place to practise. Compare the list of things that answer against the list of things you thought were on it, and note that the two differ, because they always do.
Read the service names critically. Pick an open port on something you control and check what is actually listening against what the scanner named it. The gap between those two is the lesson.
Ask a switch what it can see. If you have any managed switch, its neighbour discovery table is one command and it will name the device on the other end of each cable. Doing this once is what makes the case for turning the protocol on across an estate.
Check yourself
What do you do before running any discovery scan?
Get authorisation from somebody who can give it, in writing, with the ranges, the ports and the hours in it, and tell whoever watches the security alerts that it is happening.
Discovery tools and reconnaissance tools are the same tools, and the only thing that separates the two is permission. On a network your employer does not own, unauthorised scanning can be an offence regardless of whether anything was harmed. And a scan is loud: any monitoring worth having will flag a host opening connections to a thousand ports, so an unannounced one costs somebody an evening.
A scan reports "999 closed tcp ports (reset)" and one open port. What does the word reset tell you?
That those 999 ports answered. A reset is a reply, so the scanner did not guess they were closed, it was told, and being told means the path to that host works in both directions for all of them.
A port that was filtered rather than closed would have produced no answer at all, and the scanner reports that differently because it means something different: it cannot tell a filter from a dead host from a broken path. Closed and filtered are two results, not two words for one.
How do you get a diagram of an undocumented network without drawing one?
Collect the neighbour discovery reports from the devices. Every switch and router announces itself on each link, saying what it is, which of its own ports the announcement left by, and how to manage it, so a neighbour reading those knows exactly what is on the other end of each cable.
Each report names one cable from both ends, which is what lets the reports be joined into a graph without any prior diagram. The limit is that these announcements are layer 2 and do not cross a router, so what assembles is one map per broadcast domain.
What are the four questions to ask a device you have never logged into?
What have you got, what do you know, who are you talking to, and what were you told to do.
In commands: the interface summary, which lists every interface with its state and addresses; the routing table, where a letter on each line names how the route was learned and a marker shows which one was selected; the protocol neighbour list, which shows the adjacencies and whether they are fully established; and the running configuration, which is the one to capture into a file before changing anything.
Which question can no software tool answer, and what answers it?
Which physical cable is which. No amount of scanning or querying identifies one lead out of four hundred at an unlabelled patch panel.
A toner probe does. One half injects a signal onto the cable and the other half is a wand that finds it, and there is no software substitute. The general shape is worth holding: physical questions need physical tools, because a device can only report the world as it sees it through the fault you are chasing.
References
- Nmap reference guide - Nmap Project, for the scan types used above and for what closed and filtered mean in its output. Free. Accessed 2026-08-19.
- IEEE 802.1AB - IEEE Standards Association, the link layer discovery protocol, which defines what a neighbour announcement carries and why it stops at a router. Accessed 2026-08-19.
- FRRouting user guide - The FRRouting Project, for the show commands in the device capture and what each column of the routing table means. Free. Accessed 2026-08-19.
Pictures. The photograph on this page is a freely licensed file from Wikimedia Commons, downloaded and served from this site rather than linked across to somebody else’s server. It is resized and otherwise unaltered.
- Tone generator and wire tracker by Adamantios, CC BY-SA 3.0.
Where the numbers came from. Four captured blocks through netlab.sh on the kernel
named in each header. The two scans are on
sockets.sh,
whose package list gained nmap for them. The neighbour discovery is on
trace-path.sh,
which gained lldpd, and each router runs the daemon inside its own mount namespace with its
own run directory, which is visible in the captured command and is what stops three
daemons on one kernel from sharing a control socket. The device commands are FRRouting on
three-routers-ospf.sh,
which is a real routing stack rather than a transcript written to look like one. The
hardware tools are described rather than shown, because none of them exists in software,
and the toner probe is a photograph for the same reason. The Windows and macOS blocks are
real machines through the capture workflow, running
discovery.ps1
and
discovery.sh,
neither of which uses nmap, because neither machine has it.
If you also work on Linux systems. The scanning and neighbour tools here are the same ones a Linux engineer uses, and what is specific to this topic is the order: find what exists, ask the devices about each other, then log in. Doing it that way produces a map before the first change rather than after the first incident.
