Before you read. A 1 Gbit link between two sites has been running at 94 per cent since Tuesday. The graph is unambiguous and it has been unambiguous for three days.
Nobody can say what the traffic is. The graph is built from interface counters, and a counter is one number.
What would you have needed to be collecting before Tuesday, and what would you turn on now?
Topic 38 covered how a device is asked how much. This topic is about the harder question, which is who and what, and the two answers to it that cost very different amounts.
Some words you will need
- flow
- One conversation, identified by its addresses, ports and protocol.
- flow record
- A summary row for one flow: who, to whom, how many packets, how many bytes.
- packet capture
- Every byte of every frame, written down.
- port mirror
- A switch copying traffic from one port to another so something can watch it.
- tap
- A device in the cable itself, passing traffic through and sending a copy sideways.
- sampling
- Recording one packet in every n rather than all of them.
What breaks without this
A full link stays unexplained. The counter says 94 per cent and no counter has ever said what the traffic was.
A capture answers the wrong question. Somebody records four hours of a busy link to find out who the top talker is, fills a disk, and gets an answer that a flow record would have given from data already collected.
A capture shows half a conversation. Requests and no replies, which reads as a broken server and is a mirror configured in one direction.
One conversation, kept two ways
Both methods watch the same traffic. What separates them is what they throw away.
A flow record is a summary of one conversation. The five fields that identify it are the source and destination addresses, the source and destination ports and the protocol, which topic 09 introduced as the four-tuple with the protocol added. Alongside them the device keeps counters.
Linux keeps exactly this table on any machine doing connection tracking, and it prints in the same shape a flow exporter would send.
One conversation, kept as flow records instead of packets. What does a record hold, and what has been thrown away to make it that small?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology nat-gateway
# byte and packet counters are off by default, and they have to be on before the
# conversation starts, because the counter is allocated with the entry
$ ip netns exec nat sh -c "echo 1 > /proc/sys/net/netfilter/nf_conntrack_acct"
$ (ip netns exec srv timeout 14 nc -l -k -p 80 > /dev/null 2>&1 &)
$ sleep 1
$ ip netns exec h1 sh -c "head -c 40000 /dev/zero | nc -w 2 -q 1 203.0.113.9 80"
$ ip netns exec h2 sh -c "head -c 900 /dev/zero | nc -w 2 -q 1 203.0.113.9 80"
$ ip netns exec h1 ping -c 3 -q 203.0.113.9 > /dev/null
# every conversation the gateway has seen, and what each one moved
$ ip netns exec nat conntrack -L 2>/dev/null | grep -v unknown | sed "s/ secctx=[^ ]*//"
tcp 6 116 TIME_WAIT src=10.0.0.12 dst=203.0.113.9 sport=51108 dport=80 packets=5 bytes=1168 src=203.0.113.9 dst=203.0.113.1 sport=80 dport=51108 packets=3 bytes=164 [ASSURED] mark=0 use=1
tcp 6 115 TIME_WAIT src=10.0.0.11 dst=203.0.113.9 sport=52764 dport=80 packets=10 bytes=40528 src=203.0.113.9 dst=203.0.113.1 sport=80 dport=52764 packets=8 bytes=424 [ASSURED] mark=0 use=1
icmp 1 29 src=10.0.0.11 dst=203.0.113.9 type=8 code=0 id=70 packets=3 bytes=252 src=203.0.113.9 dst=203.0.113.1 type=0 code=0 id=70 packets=3 bytes=252 mark=0 use=1Three conversations, three rows. The second one moved 40 528 bytes in ten packets one way and 424 bytes in eight the other, which is the shape of somebody uploading something. The first moved 1 168 bytes. The third is a ping.
That is enough to answer the question at the top of the page and it is not enough to answer the next one. There is no indication of what was uploaded, which is what a capture would have. Each row also carries both the inside and the outside form of the addresses, because this gateway is doing the translation topic 25 covered, and a flow exporter on a device doing NAT has the same choice to make about which pair it reports.
Two things the exam’s vocabulary is worth being precise about. The objectives say flow data, and name no product. NetFlow, sFlow and IPFIX are the three names you will meet in the field, and none of them appear in the objectives text, so a question is far more likely to describe what flow data is for than to ask which vendor invented which. The other is that a flow is a one way thing in most implementations, so a conversation is normally two records, which is why the capture above shows the counters for each direction separately.
If you already collect flow data: sampling, and what it does to the questions you can ask
Flow data on a busy device is frequently sampled rather than complete, and knowing which you have changes what the data can answer.
A device exporting every flow does real work per conversation, so at high rates many platforms export one flow in a few hundred or a few thousand instead. The volumes are then scaled back up, which is statistically sound for the questions volume answers: what proportion of traffic went where, which links carry what, how that changed over a month. Those answers stay accurate under sampling.
What sampling destroys is the question about a specific conversation. Asking whether a particular host talked to a particular address at a particular time is a question about one flow, and one flow is exactly what a sampled export is likely to have missed. That is usually the question asked during a security investigation, which is the moment somebody discovers the sampling rate.
So the rate belongs in the documentation next to the collector, and the honest answer to an investigator is that absence of a flow is not evidence of absence of traffic. If answering that class of question matters, it needs either unsampled export on the links where it matters, which costs device resources, or a capture, which topic 73 covers and which cannot be kept for long.
Where each one sits
Getting traffic to a machine that can record it is the part people skip, and it is where the mistakes are.

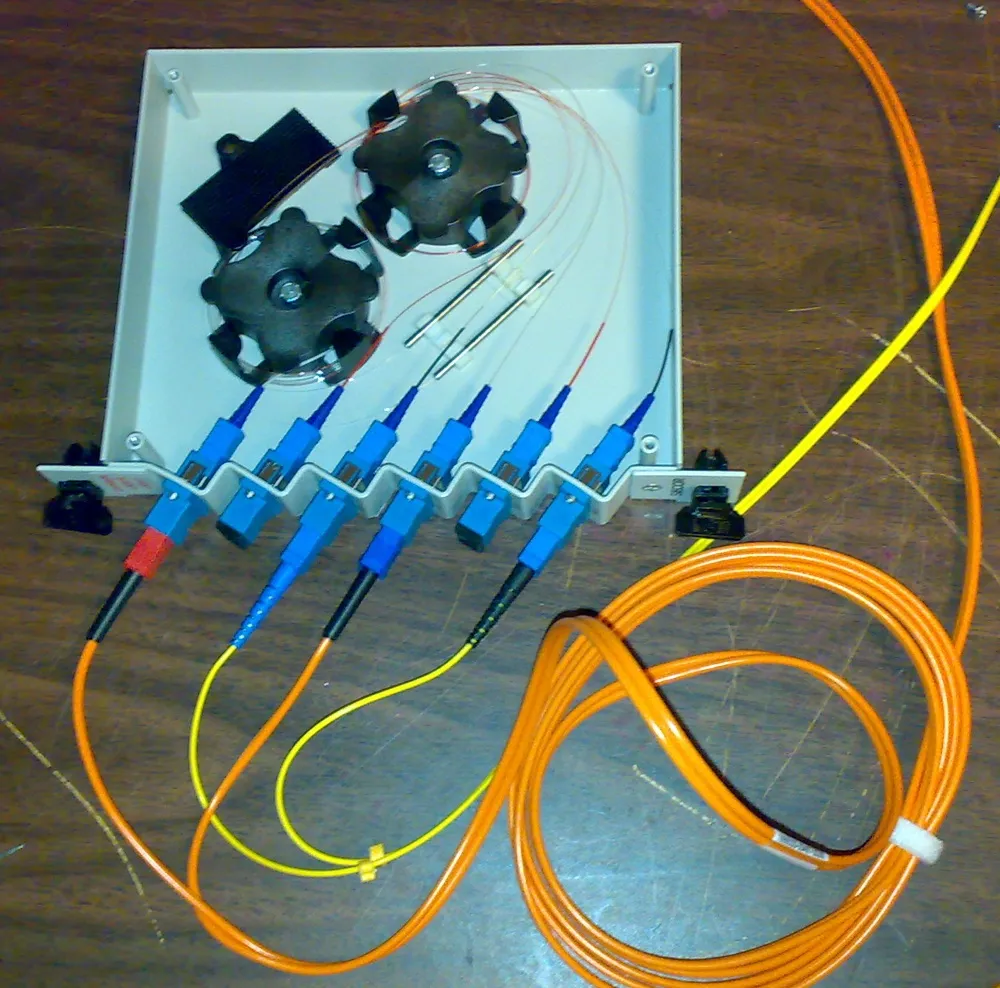

A tap goes in the cable. The link is broken and the tap is inserted into it, so everything passing between the two devices passes through the tap, and a copy goes out of a monitor port. On fibre it is a piece of glass that splits the light with no power supply and no software, which is why a tap in place is one fewer thing that can be misconfigured during an incident.
A mirror is a switch feature. The switch is told to copy traffic from one or more ports to another port, and the analyser plugs into that. Nothing is inserted into a cable and nothing goes down, which is why this is what people actually use.
The cost is that a mirror is a copy of a decision. It shows what the switch chose to forward, in the direction you asked for, when it had capacity to make the copy.
That middle clause is the one that catches people. Mirroring is configured per direction on most equipment, and configuring one of them is easy to do without realising.
A mirror configured on one switch port while two other hosts talk to each other. What arrives at the monitoring host?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology managed-lan
# mirror one direction only: frames arriving from the user port
$ ip netns exec sw1 tc qdisc add dev sw1-user handle ffff: ingress
$ ip netns exec sw1 tc filter add dev sw1-user parent ffff: matchall action mirred egress mirror dev sw1-collector
$ (ip netns exec collector timeout 6 tcpdump -i collector0 -n -c 8 icmp > /tmp/one.txt 2>/dev/null &)
$ sleep 1
$ ip netns exec user ping -c 2 -i 0.3 -q 10.0.0.20 | tail -2
2 packets transmitted, 2 received, 0% packet loss, time 307ms
rtt min/avg/max/mdev = 0.096/0.140/0.184/0.044 ms
$ sleep 6
$ cat /tmp/one.txt
16:49:21.551024 IP 10.0.0.30 > 10.0.0.20: ICMP echo request, id 83, seq 1, length 64
16:49:21.858371 IP 10.0.0.30 > 10.0.0.20: ICMP echo request, id 83, seq 2, length 64
# now mirror the other direction as well: frames the switch sends to the user port
$ ip netns exec sw1 tc qdisc add dev sw1-user handle 1: root prio
$ ip netns exec sw1 tc filter add dev sw1-user parent 1: matchall action mirred egress mirror dev sw1-collector
$ (ip netns exec collector timeout 6 tcpdump -i collector0 -n -c 8 icmp > /tmp/two.txt 2>/dev/null &)
$ sleep 1
$ ip netns exec user ping -c 2 -i 0.3 -q 10.0.0.20 | tail -2
2 packets transmitted, 2 received, 0% packet loss, time 302ms
rtt min/avg/max/mdev = 0.074/0.092/0.110/0.018 ms
$ sleep 6
$ cat /tmp/two.txt
16:49:28.885673 IP 10.0.0.30 > 10.0.0.20: ICMP echo request, id 100, seq 1, length 64
16:49:28.885710 IP 10.0.0.20 > 10.0.0.30: ICMP echo reply, id 100, seq 1, length 64
16:49:29.187642 IP 10.0.0.30 > 10.0.0.20: ICMP echo request, id 100, seq 2, length 64
16:49:29.187685 IP 10.0.0.20 > 10.0.0.30: ICMP echo reply, id 100, seq 2, length 64Both pings succeeded. Two packets sent, two received, zero loss, in both halves of that transcript.
The first capture shows requests and no replies. The replies existed, the sender got them, and the analyser never saw one, because the mirror was watching frames arriving at that port and not frames leaving it. The second capture, after the other direction is added, shows the conversation as it always was.
Read that first block cold, without the ping result next to it, and it describes a server that is not answering. That is the diagnosis it invites, it is wrong, and the fault is in the instrument.
If you already work on networks: sampling, what it does to a burst, and why an oversubscribed mirror lies in the direction that matters
Flow accounting on a busy device costs something per packet, so most implementations offer sampling: look at one packet in every n, and multiply. RFC 5475 is the framework for describing which packets get selected.
The arithmetic works and the intuition does not. At one in a thousand, a conversation of ten million packets is estimated from ten thousand samples and the estimate is good. A conversation of two hundred packets is estimated from zero samples about eighty per cent of the time, and from one sample, reported as a thousand packets, most of the rest.
So sampling is accurate for exactly the traffic that was already obvious and useless for the traffic somebody is usually hunting. A port scan is small packets to many destinations, a beacon is a few hundred bytes every few minutes, and neither survives being sampled. If the question is which application is filling the link, sample freely. If the question is whether anything unusual is talking to the internet, sampling is what will hide it.
The mirror oversubscription case has the same shape and is worse, because nothing reports it. Mirroring two ports carrying six hundred megabits each into one gigabit port asks the switch to send 1.2 gigabits out of a one gigabit interface. It sends what fits and discards the rest, and the discards are copies rather than traffic, so no counter anybody watches goes up and no alarm fires.
The result is a capture that is quietly incomplete, and it is incomplete in the worst possible way: it drops most heavily during the busiest moments, which are the moments somebody set up the capture to look at. A capture taken during an incident on an oversubscribed mirror will under-report exactly the traffic that caused the incident. This is the strongest argument for a tap on any link that genuinely matters, and it is worth being able to make in a meeting, because the mirror is free and the tap is not.
One practical consequence: check the mirror destination port’s speed against the sum of the speeds of everything you mirrored into it, and if the sum is larger, say so in writing before anybody draws conclusions from the capture.
Choosing, in one page
The three methods answer different questions, and the mistake is nearly always reaching for the heaviest one first.
Counters answer how much. They come from the interface itself over SNMP, they cost almost nothing, and they are what every bandwidth graph is made of. They can never say who.
Flow data answers who and how much. It is a summary per conversation, it is cheap enough to keep for a year, and it is the right answer to almost every question that starts with what is filling the link. It cannot say what was in the traffic, and increasingly it could not tell you anyway, because the contents are encrypted.
Capture answers what. It is the only method that shows the actual bytes, it is the only method that can prove a protocol did something specific, and it is far too expensive to leave running. It is a tool you point at a problem you have already narrowed down.
The order matters because it is the order of cost. Counters find the link, flow data finds the conversation, and a capture is what you take once you know which conversation to record.
If you already order these: what a mirror costs the switch, and when a tap is the only honest answer
Mirroring is free in the sense that no hardware is bought and it is not free in the sense that matters when you need it most.
A mirror session copies traffic to a port, and the copy competes for the switch’s internal capacity with the forwarding it is supposed to be doing. Under normal load nothing is visible. Under the load you are usually trying to investigate, the switch drops copies before it drops real traffic, which is the correct priority and means the capture is quietly incomplete exactly when it matters. Nothing marks the gap.
There is a second problem with direction. Mirroring one port gives you both directions of that port, and mirroring several ports into one can exceed the monitor port’s capacity, at which point the same silent dropping happens. Two gigabit ports mirrored into one gigabit monitor port is a common arrangement and cannot work at full load.
A tap sits in the physical path, copies at line rate, and has none of these problems, which is why anything that has to be defensible uses one. The trade is that installing it means breaking the link, so it is planned rather than arranged during an incident, and it costs money per link. The practical split most places reach is taps on the handful of links where evidence matters and mirroring everywhere else, with everybody aware which kind of answer they are getting.
Across platforms
Capturing packets needs no purchase on any of the three, which surprises people who have been told to install something.
On Linux, tcpdump is a package away and is what every capture on this page
used. Wireshark’s tshark is the same job with more decoding.
On macOS, tcpdump is part of the base system, and the kernel offers something Linux does not.
# macOS 26.5.2, arm64
$ tcpdump --version 2>&1 | head -2
tcpdump version 4.99.1 -- Apple version 158
libpcap version 1.10.1
# The interfaces it can be pointed at
$ sudo tcpdump -D | head -3
1.en0 [Up, Running, Connected]
2.utun0 [Up, Running]
3.utun1 [Up, Running]
# And the one that is not an interface, straight out of the shipped manual
$ man tcpdump 2>/dev/null | col -b | grep -i "pktap" | head -3
one may use "pktap" as the interface parameter followed by an
tcpdump -i pktap,lo0,en0
An interface argument of "all" or "pktap,all" can be used toOn Windows, the capture engine has shipped in the operating system since build 19041, and hardly anybody knows.
# Microsoft Windows Server 2025 Datacenter, version 10.0.26100.0
> Get-Command pktmon | Select-Object Name, Version | Format-Table -AutoSize
Name Version
---- -------
PktMon.exe 10.0.26100.7309
# What it can attach to, which is components rather than only interfaces
> pktmon list | Select-Object -First 8
Network Adapters:
Id MAC Address Name
-- ----------- ----
3 00-0D-3A-5C-45-AE Mellanox ConnectX-4 Lx Virtual Ethernet Adapter
37 00-15-5D-31-44-75 vEthernet (nat)
38 00-0D-3A-5C-45-AE Microsoft NetVsc Nic #3The Windows one is worth a second look, because it attaches to components rather than to interfaces. That includes virtual switches and the layers of the network stack, so it can capture at a point inside a virtualised host where no cable exists to put a tap on.
Prove it
Look at the flow table on a machine you own. Any Linux box doing NAT has one:
conntrack -L, or cat /proc/net/nf_conntrack. Read a few rows and identify the
five fields that make each one a distinct conversation.
Capture a conversation you started. Run tcpdump -i any -w /tmp/t.pcap port 443, load one page, stop it, and look at the file size. Then work out what that
size becomes over a working day at a hundred times the traffic.
Set up a mirror if you have a managed switch. Then send a ping through it and check whether you can see both directions. On a lot of equipment the default is one direction and the menu does not make that obvious.
What trips people up
1. Reaching for a capture when the question is who
Capture answers what was in the traffic. Who is sending it is a flow question, and the flow data is frequently already being collected.
2. Believing a mirror shows everything the port saw
It shows what the switch forwarded, in the configured direction, when it had capacity to copy. Frames dropped at ingress for errors were never copied.
3. Mirroring one direction and diagnosing the far end
Requests with no replies looks like a server not answering. Check the mirror configuration before the server.
4. Oversubscribing the mirror destination
Two gigabit ports mirrored into one gigabit port drops copies during exactly the busy periods somebody set the capture up to study, and nothing reports it.
5. Treating sampled flow data as complete
Sampling is accurate for large conversations and blind to small ones. Scans and beacons are small, and they are usually what somebody is looking for.
6. Naming a product when the exam names a category
The objectives say flow data. NetFlow, sFlow and IPFIX are implementations of it, and none of them appears in the objectives text.
Work it through
The 1 Gbit link at 94 per cent since Tuesday.
The first thing worth saying out loud is that the graph is doing its job. An interface counter answers how much and it has answered. The question that cannot be answered from it is who, and no amount of staring at the graph will change that, so the useful move is to stop looking at it.
What you needed before Tuesday is flow data, and it is worth checking whether you already have it. Routers and firewalls frequently export flow records to something that has been quietly collecting them for years, and a great many organisations discover during an incident that they have three years of data nobody has ever queried. If it exists, the answer is a report on the busy period sorted by bytes, and it will take longer to find the login than to run.
If it does not exist, turn it on now, because it is cheap and because this will happen again. Flow export on the device at either end of the link costs a little processing and produces something you can keep.
Then, and only then, consider a capture, and be specific about what it is for. Once flow data has told you that most of the traffic is between two addresses on one port, a capture answers what those two are actually doing, and it is a capture of one conversation for a few minutes rather than of a link for a day.
For the capture, where you attach matters. If the analyser hangs off a mirror on the switch, check two things before believing the result: that both directions are configured, and that the destination port is not slower than the sum of what is being mirrored into it. At 94 per cent of a gigabit, mirroring both directions of that link into a single gigabit port is already asking for 1.88 gigabits, and the copies that do not fit are dropped without a word.
And there is a question worth asking that is not technical. The link has been at 94 per cent for three days and it is Friday. Something changed on Tuesday, and change records are a faster route to what changed than any packet is.
Try it
Time two methods on the same question. Take a busy interface and answer who is using it, first from flow data and then from a capture. The point is not which is correct, it is how long each takes and how much disk each costs.
Break a mirror on purpose. Configure one direction only, then run something that requests and receives, and read the capture as though you did not know. It is a useful five minutes because the wrong diagnosis is so plausible.
Work out your own sampling threshold. Pick a sampling rate and calculate how many packets a conversation needs before you would expect to see even one sample. That number is the size below which your flow data is fiction.
Check yourself
A link is saturated and the bandwidth graph cannot say why. What is the graph made of, and what would answer the question?
The graph is made of interface counters, polled over SNMP. A counter is a single number of bytes, so it can say how much traffic there was and can never say whose it was or what it contained.
Flow data answers it. Each record identifies one conversation by its addresses, ports and protocol, and carries packet and byte counts, so the busy period sorts by bytes into a list of who. A capture would also answer it and costs orders of magnitude more, which makes it the wrong first move.
A capture taken from a port mirror shows requests going to a server and no responses coming back, but users say the application works. What is the most likely explanation?
The mirror is copying one direction only. Most equipment configures ingress and egress mirroring separately, and setting up one without the other is easy to do without noticing.
The giveaway is that the application works. If the server genuinely were not responding, the users would be the first to say so. Check the mirror before you check the server.
Why can a tap show you a frame with a bad checksum when a mirror cannot?
Because of where each one sits. A tap is in the cable, so it copies the signal before any device has judged it, and a corrupted frame reaches the analyser corrupted.
A mirror is inside the switch and copies frames the switch has already accepted. A frame failing its checksum is discarded at ingress, and there is nothing left to mirror. That is why a tap is the instrument for suspected physical faults.
Two 1 Gbit ports are mirrored into one 1 Gbit port. What happens during the busiest hour, and how would you know?
The switch is being asked to send up to 2 Gbit out of a 1 Gbit interface, so it discards whatever does not fit. The discards are copies rather than real traffic, so nothing that anybody monitors increments and no alarm fires.
You would not know from the capture, which is the problem. It looks complete and it is missing most heavily during the busiest moments, which are the ones the capture was set up to examine. The check is arithmetic done in advance: compare the destination port’s speed with the sum of what is being mirrored into it.
Flow data is sampled at one in a thousand. Why might a port scan not appear in it at all?
Because a scan is a very large number of very small conversations. Each one is a handful of packets, and at one in a thousand the chance that any given one contributes a sample is small.
Sampling estimates large flows well and small ones not at all, so it is accurate for the traffic that was already visible and blind to the traffic somebody is usually looking for. Scans, beacons and small exfiltration all sit below the line.
References
- RFC 7011 - IETF, the IPFIX protocol specification, which defines what a flow is and what a record carries. Free. Accessed 2026-08-12.
- RFC 3954 - IETF, the informational description of NetFlow version 9, which is where the flow record shape most people have seen comes from. Free. Accessed 2026-08-12.
- RFC 5475 - IETF, on sampling and filtering techniques for packet selection. Free. Accessed 2026-08-12.
- tcpdump(1) - The Tcpdump Group. Accessed 2026-08-12.
- conntrack(8) - Linux man-pages project, on the connection tracking table the flow capture on this page reads. Accessed 2026-08-12.
- tc-mirred(8) - Linux man-pages project, the action that performs the mirroring in the capture. Accessed 2026-08-12.
- Packet Monitor - Microsoft, for which build ships pktmon in the box. Free. Accessed 2026-08-20.
Pictures. A freely licensed file from Wikimedia Commons, downloaded and served from this site rather than linked across to somebody else’s server. Resized and otherwise unaltered.
- Fiber optic tap by Roens, CC BY-SA 4.0.
Where the output came from. The flow table was captured on the nat-gateway
namespace topology and the mirroring session on managed-lan, both through
blog/scripts/netlab.sh. The mirror is a real one: a Linux bridge with a tc
filter copying frames from one bridge port to another, which is the same operation
a switch performs, so the missing replies in the first capture are a genuine
consequence of the configuration rather than an edited transcript. Connection
tracking is not the same thing as a flow exporter, and it is not presented as one.
It is used here because it keeps the same fields with the same meanings, on a
machine anybody can run, which makes the shape of a flow record checkable rather
than illustrated.
If you also work on Linux. I/O and network performance on the Linux+ track approaches the same measurements from inside one machine rather than from the network, and the two are worth reading together: that page asks why this host is slow, this one asks what is on the wire.
