Before you read. A switch 200 miles away has a configuration mistake. You can log in to it and fix it, and the command that fixes it will briefly interrupt the network path you are logged in over.
There is nobody at that site today.
What do you do, and what would have to be true for this not to be a decision?
Every device you administer is somewhere else. This topic is about the ways in, and about the one property that separates a bad afternoon from a van journey.
Some words you will need
- console
- A serial port on the device, reached with a cable rather than a network.
- jump box
- A machine you log in to first, because it is the only thing permitted to reach the rest.
- in band
- Management traffic sharing the network it manages.
- out of band
- Management traffic on a path that does not depend on the network it manages.
- console server
- A box with many serial ports, so console access does not require being in the room.
- API
- A programmatic interface, so configuration can be applied by software rather than typed.
What breaks without this
A device becomes unreachable during a change and stays that way until somebody drives to it.
Everything is reachable from everywhere, because management was never separated from ordinary traffic and any compromised machine can log in to a switch.
Configuration is applied by hand on forty devices and three of them end up different, which is topic 37’s drift arriving by the front door.
Four ways in
The exam names four and they are not interchangeable.
Console is a serial port on the device. It needs a cable and physical presence, or something standing in for presence, and it is the only one that works when the device has no working network configuration at all. It is what you use to configure a device that has never been configured, and what you use when everything else has failed.
SSH is the normal answer. An encrypted session, authenticated by key or password, over the network. Telnet is the same idea without the encryption and is named on this exam mainly so you can say why it should not be used, which topic 10’s capture of a plaintext session shows better than any argument.
A graphical interface is a web console on the device or a management application. Good for seeing state, poor for repeatability, and it is the one that makes forty devices end up slightly different from each other.
An API is how a device is configured by software rather than by a person. NETCONF over SSH and RESTCONF over HTTPS are the standardised ones, and this is the route that makes a golden configuration enforceable rather than aspirational. Topic 37’s argument about drift is really an argument for this.
The useful way to hold them apart is by what each one survives. An API and a graphical interface need the device’s network stack and its management service working. SSH needs its network stack. The console needs the device to be powered on and nothing else.
If you already lock these down: the access method that is enabled and forgotten
Most devices offer all four routes at once, and hardening usually removes the obvious one while leaving something else listening.
The pattern is that somebody disables the plaintext terminal protocol, which is correct and is the one everybody knows about, and leaves the web interface enabled on plain HTTP because it is how the device was set up. Or leaves an older management protocol enabled because a monitoring system used it once. Or leaves a vendor’s own discovery and management service running, which frequently listens on something nobody has heard of.
Which is why hardening a device starts with asking what it is listening on rather than with a checklist of things to turn off. The scan from topic 74 answers that in a few seconds, against the device itself, and it reliably finds services nobody knew were there. A checklist finds only the things its author thought of.
The second half is restricting where management can be reached from, which is worth more than disabling individual services. A device that accepts management only from the management network has closed every one of those doors at once, including the ones nobody enumerated, and it does not depend on getting the list right.
Not directly, but through something
Most estates do not let a workstation talk to network equipment at all.
An administrator tries to reach a device on the management network directly from their own machine. Does it answer?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology jump-box
# the admin workstation cannot reach the device at all
$ ip netns exec admin ping -c 1 -W 2 -q 10.9.0.20 2>&1 | tail -2
1 packets transmitted, 0 received, 100% packet loss, time 0ms
# and cannot open a connection to it either
$ timeout 10 ip netns exec admin ssh -o BatchMode=yes root@10.9.0.20 hostname 2>&1 | tail -1
ssh: connect to host 10.9.0.20 port 22: Connection timed out
# but a login on the jump host, and a second one from there, works
$ timeout 20 ip netns exec admin ssh -o BatchMode=yes -J root@10.0.0.10 root@10.9.0.20 "hostname; ip -br addr show device-swb" 2>&1 | tail -2
7bf3b5e2689b
device-swb@if12 UP 10.9.0.20/24 The workstation cannot ping the device and cannot open a connection to it. A login on the jump host, and a second connection from there, reaches it immediately.
The jump host is not a router, and that is the part people get wrong when building one. If it forwarded packets between the two segments it would be a hole rather than a control: anything on the admin segment could reach the device directly and the jump box would be decoration. It has an interface on both sides and forwarding switched off, so the only thing that crosses is a session somebody authenticated to open.
What that buys is a single place where administrative access happens, which means one place to require multifactor authentication, one place to record what was done, and one set of credentials to rotate. Topic 35’s argument about authentication and authorisation being separate gates is the shape of it: getting onto the jump box is one gate and reaching a particular device is another.
If you already run a jump host: why it becomes the most valuable machine you own
Concentrating administrative access at one point is the right design and it creates a target with a property worth thinking about carefully.
Everything reachable from the jump host is reachable by whoever controls it, and by design that is everything. Credentials pass through it, sessions originate from it, and the network trusts it in a way it trusts nothing else. So it inherits the combined value of every device behind it, which makes it more valuable than any of them individually.
Three things follow. It gets the strongest authentication available rather than the same as everything else, because a phishable second factor on the jump host undoes the protection for the whole estate. It gets the most attention in patching, since it is exposed by definition. And it gets session recording, which is unusual to configure and is the only way to answer what was done during an incident, since the devices behind it will all report the same source.
The failure worth naming is the second jump host that appears because the first was inconvenient. Somebody sets up a route that bypasses it for one team, temporarily, and the control now covers most of the estate rather than all of it, which is a much weaker statement. Auditing for connections to management addresses that did not come from the jump host is the check that finds those, and it is worth running periodically rather than trusting the policy.
The trap
Managing a device over the network the device provides has one specific failure, and it is worth seeing rather than being warned about.
The same device the direct attempt could not reach, tried again through the jump host. Does it work, and what does the device see as the source?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology jump-box
# log in to the device, then change the interface the login is arriving on
$ timeout 20 ip netns exec admin ssh -n -o BatchMode=yes -o ServerAliveInterval=2 -o ServerAliveCountMax=2 -J root@10.0.0.10 root@10.9.0.20 "echo connected; ip link set device-swb down; sleep 6; echo still connected" > /tmp/s1.txt 2>&1 </dev/null; echo "exit status $?"
exit status 255
$ cat /tmp/s1.txt
connected
# try to get back in
$ timeout 15 ip netns exec admin ssh -n -o BatchMode=yes -J root@10.0.0.10 root@10.9.0.20 hostname > /tmp/s2.txt 2>&1 </dev/null; echo "exit status $?"
exit status 255
$ tail -1 /tmp/s2.txt
Connection timed out during banner exchange
# meanwhile the device is running perfectly well
$ ip netns exec device ip -br link show device-swb
device-swb@if12 DOWN 02:00:00:00:00:20 <BROADCAST,MULTICAST> The session connects, runs the command, and dies before the next line. The interface it was arriving over is now down, so the acknowledgement never comes back and the sleep never finishes. The second attempt cannot even complete a banner exchange.
The device is entirely healthy. It is powered, its software is running, its other interfaces are up, and the only thing wrong with it is one setting that can now be changed by exactly one method: somebody standing in front of it.
That is the fault the deck describes and the reason the topic exists. Every change to a device you are managing over that device carries this risk, and the risky changes are the ordinary ones: an interface setting, an address, a VLAN, a firewall rule, a routing change.
Three things reduce it and they are worth knowing as a set.
Some equipment supports a confirmed commit: apply the change, and if nobody confirms within a timeout the device rolls it back automatically. That turns a lockout into a two minute outage.
A scheduled reload does the same thing crudely on equipment that has no such feature: schedule a reboot in ten minutes, make the change, and cancel the reboot if you are still connected. If you are not, the device reboots into the saved configuration.
And out of band access removes the question entirely, which is the rest of this page.
In band and out of band
The distinction is one sentence and the consequences fill an incident report.
If you already work on networks: what out of band access has to avoid depending on, and why the list is longer than it looks
An out of band path is only out of band with respect to something. Writing down what it must survive is more useful than the label, and the list catches most designs.
The device’s own configuration. If reaching it requires its routing or its VLANs to be correct, a configuration mistake takes the path with it. Console access passes; a management VLAN does not.
The site’s connectivity. If the path arrives over the same wide area link as everything else, a failure of that link removes both at once. This is the most common gap, because a management VLAN carried over the same MPLS or internet circuit looks separate on a diagram and is not.
The organisation’s authentication. If logging in to the console server requires a directory server that is reachable only through the network that is down, the path exists and cannot be used. Local accounts on out of band equipment are one of the few places where they are the right answer, and they need to be in the recovery documentation topic 41 says nobody has read.
Power. Console access to a device with no power is nothing. Out of band power control, a switched PDU on its own path, is the other half, and it is what turns “somebody has to drive there” into a command.
Name resolution. Reaching the console server by name, when DNS is inside the network that is down, has the same shape as the authentication problem and the same answer: write the addresses down.
The pattern is one question asked repeatedly: what does this depend on, and is that thing also broken in the scenario I am designing for? The failure mode is never that somebody forgot to build an out of band path. It is that they built one that quietly depended on the thing it was supposed to survive.
Across platforms
The client side of three of the four ways in is now the same everywhere, which is a recent change.
On Linux, ssh has always been there.
On macOS, so has it, along with the serial devices for a console cable.
# macOS 26.5.2, arm64
$ ssh -V 2>&1
OpenSSH_10.2p1, LibreSSL 3.3.6
# Whether this machine will also accept connections
$ sudo systemsetup -getremotelogin 2>&1 | head -2
Remote Login: On
# The serial side, which needs a driver and a cable rather than a network
$ ls /dev/cu.* 2>/dev/null | head -3On Windows, OpenSSH is now installed by default, which for two decades it was not.
# Microsoft Windows Server 2025 Datacenter, version 10.0.26100.0
> ssh -V 2>&1
OpenSSH_for_Windows_9.5p2, LibreSSL 3.8.2
# Whether this machine will also accept connections
> Get-Service sshd -ErrorAction SilentlyContinue | Format-Table Name, Status, StartType -AutoSize
Name Status StartType
---- ------ ---------
sshd Running Automatic
> Get-WindowsCapability -Online -Name "OpenSSH*" | Select-Object Name, State | Format-Table -AutoSize
Name State
---- -----
OpenSSH.Client~~~~0.0.1.0 Installed
OpenSSH.Server~~~~0.0.1.0 Installed
# The serial side, which needs a cable rather than a network
> [System.IO.Ports.SerialPort]::GetPortNames() | Measure-Object | Select-Object -ExpandProperty Count
1That is worth noting because a great deal of older material assumes a Windows
administrator needs third party software to reach a switch, and for anything
current they do not. The same client, the same key formats, and the same
~/.ssh/config behaviour as everywhere else.
The serial side is the part that still differs. A USB serial adapter appears as
/dev/cu.* on macOS, /dev/ttyUSB* on Linux and a COM port on Windows, and
each needs a terminal program that can open it.
Prove it
Find the console port on something. Any managed switch or router you have access to. Note which end you would need a cable for, and whether you own one.
Check whether your management path is genuinely out of band. Ask what it depends on and whether those things are also broken in the scenario you are protecting against.
Look at how your changes are applied. By hand, by a graphical interface, or by something that could apply the same change to forty devices identically.
What trips people up
1. Calling a management VLAN out of band
It usually runs on the same switches over the same links. A configuration mistake that breaks the device breaks the management VLAN with it.
2. Building a jump box that routes
If it forwards packets between the two segments, everything on one side can reach the other and the control is decoration. Forwarding must be off.
3. Making a change over the path the change affects
The command applies, the session dies, and the device is healthy and unreachable. This is the most common way to need a van.
4. Assuming the console is a last resort worth skipping
It is the only method that works with no valid network configuration at all, which is exactly the situation you will be in.
5. Putting the out of band network behind the same authentication
A console server that needs a directory server on the broken network is an out of band path you cannot log in to.
6. Treating a graphical interface as equivalent to an API
One is repeatable across forty devices and one is not, and the difference shows up as configuration drift six months later.
Work it through
The switch 200 miles away, the change that will interrupt your own session, and nobody on site.
The first thing to establish is whether this is a decision at all, because it only is one if the sole way in is through the switch itself.
So the first question is what other path exists. If there is a console server with a cable to that switch, the whole problem evaporates: connect over the console, make the change, watch it come back, and the interruption to your own network session is irrelevant because you are not using it. Ten minutes.
Assume there is not. Now you are choosing between three options and they have different costs.
Make the change and hope. Sometimes correct, when the interruption is genuinely brief and the change is one you have made before on identical equipment. It is also how most lockouts happen.
Make it safe to be wrong. If the equipment supports a confirmed commit, use it: the change applies, and if you do not confirm within the timeout it rolls back by itself. If it does not, schedule a reload for ten minutes’ time, make the change, and cancel the reload if you are still connected. Both convert a van journey into a short outage, and the second works on almost anything.
Wait for somebody to be on site. The right answer when the change is large, the equipment is unfamiliar, or the site matters enough that a wrong guess is expensive.
Then there is the question that outlives this switch. A device 200 miles away with no out of band access is going to produce this decision again, and the cost of the next one is not the change itself but the day somebody spends driving. The argument for a console server is easiest to make while an incident is fresh, and the design detail that matters is in the deeper panel: it has to reach the site by a path that does not depend on the equipment it is there to rescue, and somebody has to be able to log in to it when the directory server is unreachable.
Finally, the small thing that makes the difference on the day. Whatever you decide, save the working configuration first and know how to get back to it. Topic 37’s point about a rollback plan written before the change rather than during it is the same point, and this is the change where it is tested.
Try it
Lock yourself out of something on purpose. In a lab, ssh to a machine and take down the interface you arrived on. It takes thirty seconds and it is not a lesson anybody forgets.
Use a confirmed commit. On any equipment that supports one, make a harmless change and let the timer expire without confirming. Watching it revert is what makes you trust it during a real change.
Try a console cable. Borrow one, find the port, and connect to something. The first time is fiddly and the fiddliness is the point: it is worth doing before the day you need it.
Check yourself
Why is a dedicated management VLAN usually not out of band?
Because it normally runs on the same switches over the same links as everything else. A configuration mistake or a failure that stops the device forwarding stops the management VLAN too.
The test is not whether the path is separate on the diagram but whether it shares a dependency with the thing being managed. If the device has to be working for you to reach it, the path is in band whatever it is called.
What is the one thing a jump box must not do, and why?
Forward packets between its two segments. If it routes, then anything on the administrative side can reach the managed side directly and the jump box is decoration rather than a control.
With forwarding off, the only thing that crosses is a session somebody authenticated to open, which gives one place to enforce multifactor authentication, one place to record what was done, and one set of credentials to manage.
You change an interface setting over an SSH session that arrives on that interface. What happens, and what is the state of the device?
The command applies, the session stops immediately, and no further connection can be made. The device is entirely healthy: powered, running, other interfaces up, with one setting that can now only be changed by somebody in front of it.
That is why confirmed commits and scheduled reloads exist. Both make the change revert on its own if you do not confirm you are still connected, which turns a lockout into a short outage.
Which of the four access methods works when a device has no valid network configuration at all?
The console. It is a serial port on the device reached by a cable, so it needs the device powered and nothing else: no address, no route, no working switch port and no management service.
SSH, a web interface and an API all need the device’s network stack and its management service working, which is precisely what is not true in the situation where you most need to get in.
An out of band path exists and cannot be used during an outage. Name two likely reasons.
Authentication and connectivity. If logging in to the console server requires a directory server reachable only through the network that is down, the path is there and unusable, which is why local accounts on out of band equipment are one of the few places they are correct.
And if the console server reaches the site over the same wide area link as everything else, a failure of that link removes both at once. Name resolution and power fail the same way: reaching it by a name served from inside the broken network, or reaching a device with no power, are both paths that exist on paper.
References
- RFC 4251 - IETF, the SSH architecture. Free. Accessed 2026-08-13.
- RFC 6241 - IETF, NETCONF, the configuration API that runs over SSH. Free. Accessed 2026-08-13.
- RFC 8040 - IETF, RESTCONF, the same idea over HTTPS. Free. Accessed 2026-08-13.
- NIST SP 800-53 Rev. 5 - NIST, for the controls on separating management access from ordinary traffic. Free. Accessed 2026-08-13.
Pictures. A freely licensed file from Wikimedia Commons, downloaded and served from this site rather than linked across to somebody else’s server. Resized and otherwise unaltered.

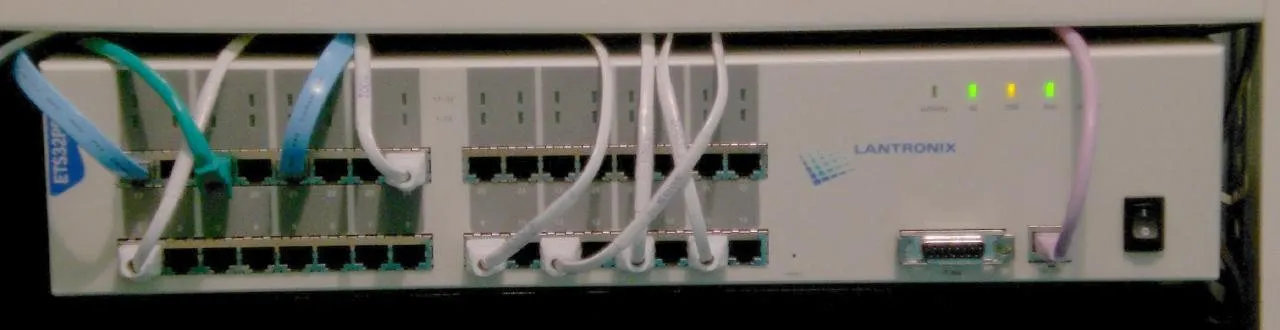

- Lantronix ETS32PR console server by Crispmuncher, CC BY 3.0.
Where the output came from. Both Linux blocks ran on the jump-box namespace
topology through blog/scripts/netlab.sh, with real sshd instances and key
authentication. The jump host has an interface on both segments and IP forwarding
switched off, which is what makes the first capture’s ping failure and ssh success
a demonstration rather than an assertion. The lockout is genuine: the command runs,
the interface goes down, and the session ends without completing, which is why the
second line of output never appears. Host key checking is disabled in the lab
because the containers are rebuilt for every run and there is no way to have
verified a key that did not exist a minute ago; that is the one thing on this page
a real deployment must not copy. The Windows and macOS blocks came from GitHub
Actions runners through blog/scripts/hostcap.sh.
