DNS security

The answer came back signed, and something still gave you the wrong address

Lesson 47 of 76·Working knowledge·21 min read·updated ·network-plusnetworkingsecurity

On the examCompTIA Network+ N10-009 (V9)

  • 3.4Given a scenario, implement IPv4 and IPv6 network services.Domain 3.0 Network Operations·19% of the exam

All 25 objectives, and which are covered

Before this

What you will be able to do

  • Say what DNSSEC signs and what it does not do
  • Explain why a validating resolver returns SERVFAIL rather than a wrong answer
  • Distinguish DNS over TLS from DNS over HTTPS and say what each conceals
  • Say what neither of them hides
  • Describe poisoning and spoofing as the attacks these answer

Before you read. A user reaches a convincing copy of a company’s login page. The address in the browser is correct. The name resolved to a server nobody at the company owns.

The zone is signed with DNSSEC and every signature checked out.

How can both of those be true at once?

DNS was designed in 1983 with no security in it at all, and the two mechanisms bolted on since answer different questions. Being precise about which is which is most of what this topic is for, because the two get sold as the same thing and a network can have one without the other.

Some words you will need

DNSSEC
Signatures over records, so an answer can be checked against the zone owner's key.
RRSIG
The record that holds one of those signatures.
trust anchor
A key you already have, which the chain of signatures is checked back to.
DoT
DNS over TLS. The same messages inside a TLS connection, on port 853.
DoH
DNS over HTTPS. The same messages inside ordinary web requests, on port 443.
DNS spoofing
Answering a query with a forged reply so the asker goes somewhere the zone never named. The exam's word for the whole family.
cache poisoning
Spoofing that a resolver stores, so the forged answer persists and reaches everyone using that resolver rather than the one machine that asked.

What breaks without this

A resolver accepts an answer from the wrong place and every machine using it goes to the wrong server for as long as the record is cached.

Every question anybody asks is readable by whoever is on the path, which is a list of every site each person visited.

A signed zone with one bad record takes the whole name down, which is a failure mode people are unprepared for the first time it happens.

Two mechanisms, two questions

Before either one, it is worth being exact about what each is for.

Three properties of a DNS answer, showing which of them signing provides, which encrypted transport provides, and which neither provides two answers to two different questions, and one they both leave open DNSSEC DoT or DoH both together the answer has not been altered the answer came from the zone owner you are talking to the resolver you chose nobody on the path can read the question the resolver itself cannot see what you asked
Signing and encrypting are not two grades of the same thing. DNSSEC is about the answer and says nothing about the journey; encrypted transport is about the journey and says nothing about the answer. Running both is not redundant, and running one is not most of the way to the other. The last row is the one worth arguing about, because it is the row that never turns into a tick. Whichever resolver you send your questions to, encrypted or not, knows every name you asked for. Encrypted transport moves that knowledge from your network operator to whoever runs the resolver, and the argument about DNS over HTTPS is mostly an argument about who you would rather that be.
If you already deploy this: why signing has not won, and what deployed instead

Signing answers a real problem and its adoption has been slow for reasons worth knowing, because they are the reasons most security mechanisms deploy slowly.

Signing a zone means managing keys, rolling them on a schedule, and keeping a record in the parent zone that matches. Every one of those is a way to take a domain off the internet entirely if it goes wrong, and the failure is total rather than degraded: a resolver that validates and finds a broken signature returns nothing rather than the unsigned answer. So the risk of enabling it is concentrated, immediate and owned by whoever enabled it, while the risk of not enabling it is diffuse. That is the same asymmetry topic 37’s panel describes about patching.

What deployed instead, and deployed everywhere, was source port randomisation. It does not authenticate anything. It makes the guessing attack it was aimed at far harder by widening the range an attacker has to guess, it required no key management, no parent zone coordination and no operational risk, and it shipped in resolver updates.

The general shape is worth carrying: the mitigation that deploys is frequently not the one that solves the problem properly but the one that can be turned on without anybody having to be brave. That is not an argument against signing. It is an argument for counting operational risk as a real cost when comparing two defences.

What a signature is over

DNSSEC signs record sets. The signature is a record in its own right, it lives in the zone next to what it signs, and it travels with the data.

A signed record set travelling from the authoritative server through a resolver and a cache to a client, with the signature intact at every hop and the transport unprotected the signature travels with the record, not with the connection zone owner resolver a cache you A 203.0.113.10 + RRSIG, checkable by anybody, at every hop every hop is readable to anybody on the path the question, the answer and who asked it
This is the structural reason DNSSEC works at all in a system built on caching. A signature over a record survives being copied, so a resolver can hand out an answer it stored an hour ago and the person receiving it can still check it against the zone owner's key. Nothing has to trust the resolver, which is what makes the property useful. It also explains the limitation drawn underneath: the signature says who wrote the record and says nothing whatsoever about the connection carrying it, so an observer sees the question, the answer and the address that asked, exactly as they would without it.

Here is a zone signed with its own keys, and a resolver told to check them.

A signed answer asked for with validation switched on. Which flag in the reply tells you the signature was checked?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology dns-secure
# the signed answer, and the flag that says the resolver checked it
$ ip netns exec client dig @10.0.0.4 +dnssec www.lab.example A | grep -E "status:|^;; flags|^www"
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 55136
;; flags: qr rd ra ad; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1
www.lab.example.	3600	IN	A	203.0.113.10
www.lab.example.	3600	IN	RRSIG	A 13 3 3600 20260912142404 20260813142404 55174 lab.example. 51LaLw01zK2RMkqSY4VLgJsf+eFCL8bwO2qsL4U142t+I527qf2F7gFp QDB30dC0Jy2pJie/8q0gQh5eqnCNBQ==

# now change the address in the signed zone, without re-signing it
$ ip netns exec auth sed -i "s/203.0.113.10/203.0.113.66/" /etc/bind-auth/lab.example.signed
$ ip netns exec auth pkill named; ip netns exec resolver pkill named; sleep 1
$ ip netns exec auth named -c /etc/bind-auth/named.conf
$ ip netns exec resolver named -c /etc/bind-resolver/named.conf
$ sleep 4
# the server that owns the zone hands out the new address quite happily
$ ip netns exec client dig @10.0.0.3 www.lab.example A +short
203.0.113.66
# the resolver that checks signatures will not hand out anything at all
$ ip netns exec client dig @10.0.0.4 www.lab.example A | grep -E "status:|^www"
;; ->>HEADER<<- opcode: QUERY, status: SERVFAIL, id: 41267

The ad flag in that first answer is the whole point. It stands for authenticated data, and it means the resolver checked the signature chain back to a key it already trusted and the check passed. Without validation the same answer arrives looking identical, which is why the flag is worth being able to spot.

Then the address in the signed zone is changed without re-signing it, and the two servers disagree about what to do.

The authoritative server hands out the new address without hesitation, because nothing about serving a zone requires the signatures to match the data.

The validating resolver returns SERVFAIL. Not the old answer, not the new one, and not a warning: nothing at all. That is the correct behaviour and it is the part that surprises people. A validator that cannot verify an answer has no way to know which part is wrong, so the only safe thing it can do is refuse to pass anything on.

Which means a DNSSEC mistake takes a domain off the internet for everybody whose resolver validates, while continuing to work perfectly for everybody whose resolver does not. A domain that works from your phone and fails from the office is a signature that has expired or a key that was rolled without updating the parent, and it is one of the few faults where the symptom points almost uniquely at the cause.

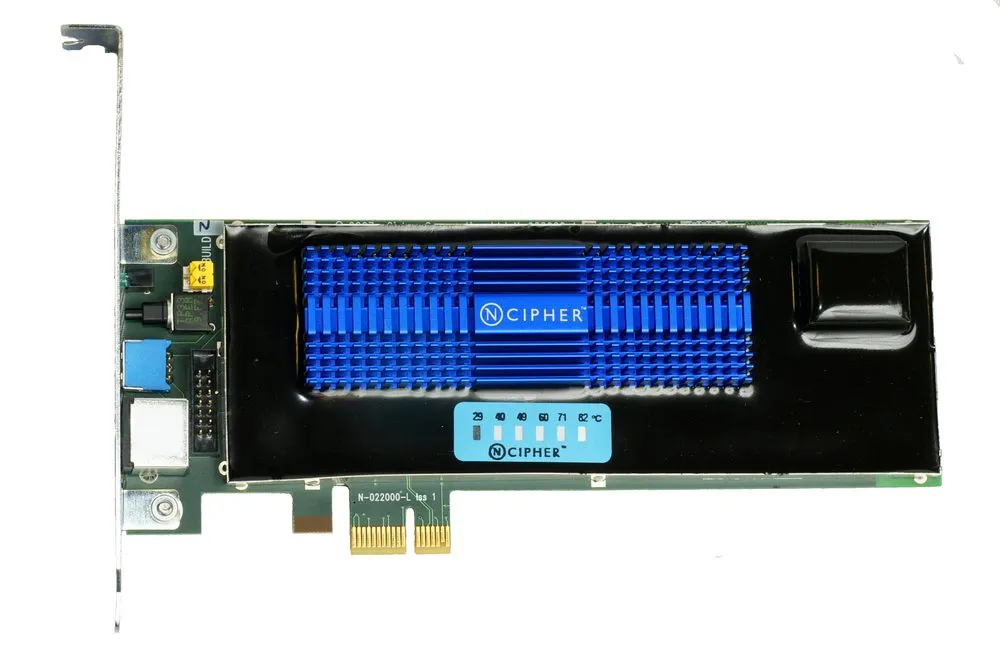

A hardware security module on a PCIe card, photographed against a white background. Most of the board is covered by a black potted enclosure with a blue finned heatsink set into it, printed with the manufacturer’s name. A small strip of temperature indicator dots runs along the lower edge of the potting, marked 29, 40, 49, 60, 71 and 82 degrees. The gold PCIe contacts and a metal mounting bracket are visible at the edges.

What a signing key lives in when it matters. The black area is potting compound, poured over the processor and memory and set hard, so the components cannot be probed without destroying them, and the temperature strip beside it is there because heat is one of the ways somebody would try. A module like this generates its own keys and performs signatures internally, and the private key is never available to the machine it is plugged into, which is a different proposition from a key in a file with careful permissions on it. That distinction matters for DNSSEC because the key-signing key of a zone is a long-lived secret whose compromise is not something you can undo quickly: the parent has published a fingerprint of it, resolvers have cached that, and replacing it is a process measured in days. Photograph by Alexander Klink, CC BY 3.0.
If you already validate: proving that a name does not exist, and the awkward answer

Signing the records in a zone is the easy half. Proving that a name is absent is harder, because there is no record to sign.

The answer is to sign statements about the gaps: a record saying nothing exists between one name and the next in sorted order. A resolver asking for a name that falls in one of those gaps gets the signed gap statement and can verify that the absence is genuine rather than an attacker suppressing an answer.

The awkward consequence is that walking those statements lets anybody enumerate the whole zone. Ask for a name that does not exist, receive the gap either side of it, ask for something just past that, and repeat until you have every name in the zone. For an organisation that treated its internal names as semi-private, that is an unwelcome property of turning signing on.

There is a later mechanism that hashes the names before sorting them, which makes enumeration expensive rather than free, and not impossible either, since the hashes can be attacked offline. Which is the point worth taking away: names in a signed zone are not secret, and any design relying on a name being unguessable was relying on something that was never a security property.

The two that encrypt

DNSSEC leaves every question and answer readable on the wire. Two protocols fix that and they differ mostly in where they hide.

DNS over TLS puts the ordinary DNS message inside a TLS connection on port 853. It is DNS, recognisably, on a port of its own.

DNS over HTTPS puts the same message inside an HTTPS request on port 443, where it is indistinguishable from any other web traffic.

Asking the same question both ways, with a capture running on each, shows what changes.

A signed answer crosses the network and somebody is capturing port 53. Can they read what was asked and what came back?
# Fedora CoreOS 44.20260707.3.1, kernel 7.1.3-200.fc44.aarch64
# linux network namespaces, topology dns-secure
# commands run on client
# the same question twice, on port 53 and on port 853, with a capture of each
$ (timeout 10 tcpdump -i client0 -n -A -s0 "port 53" > /tmp/plain.txt 2>/dev/null &)
$ (timeout 10 tcpdump -i client0 -n -A -s0 "port 853" > /tmp/tls.txt 2>/dev/null &)
$ sleep 2
$ dig +short @10.0.0.4 www.lab.example A
203.0.113.10
$ dig +tls +short @10.0.0.4 www.lab.example A
203.0.113.10
$ sleep 9
# on port 53, the name is in the packet and so is the answer
$ grep -a "A? www\|A 203" /tmp/plain.txt | head -2
16:01:42.983544 IP 10.0.0.5.33093 > 10.0.0.4.53: 5410+ [1au] A? www.lab.example. (56)
16:01:42.989073 IP 10.0.0.4.53 > 10.0.0.5.33093: 5410$ 1/0/1 A 203.0.113.10 (88)
# on port 853, the same conversation, searched for the same name
$ echo "packets on 853: $(grep -ac "IP 10" /tmp/tls.txt)"
packets on 853: 17
$ echo "times the name appears in them: $(grep -ac "lab.example" /tmp/tls.txt)"
times the name appears in them: 0
$ echo "times the address appears in them: $(grep -ac "203.0.113.10" /tmp/tls.txt)"
times the address appears in them: 0

On port 53 the name is in the packet and so is the answer. On port 853 there are seventeen packets carrying the same conversation, and the name appears in none of them.

The difference between the two protocols is not cryptographic. Both use TLS and both conceal the same content. The difference is that a port number is a policy handle and 443 is not: an organisation can block or redirect port 853 and force its own resolver to be used, and it cannot do the same to 443 without breaking the web. That is the whole of the argument about DNS over HTTPS, and it is worth being able to state neutrally, because it is an argument about who controls resolution rather than about encryption.

The consequence a network administrator meets first is split horizon. Many organisations answer internal names differently on the inside, and a laptop whose browser has quietly enabled DNS over HTTPS to a public resolver stops seeing those answers. The symptom is that internal sites fail on one machine while everything public works, and nothing in the network changed.

If you already work on networks: what poisoning actually required, why the fix was randomness rather than signatures, and what DNSSEC does about a name that does not exist

Cache poisoning is the attack both of these are usually explained by, and the mechanics are worth knowing because the defence that actually deployed was not DNSSEC.

A resolver accepts an answer if it arrives from the address it asked, on the port it asked from, with the query identifier it used, and matching the question. The identifier is 16 bits. An attacker who can guess the source port and win a race against the real server can have their answer cached instead, and in 2008 it became clear that the guessing was far easier than anybody had assumed, because many resolvers used a predictable source port and the attacker could force repeated attempts by asking for names that did not exist.

The fix that shipped everywhere within weeks was source port randomisation, which is RFC 5452: use a random source port as well as a random identifier, and the search space becomes roughly 32 bits instead of 16. It is a mitigation rather than a solution, it makes the attack expensive rather than impossible, and it is what is actually protecting most of the internet today. DNSSEC is the solution and its deployment on the answering side remains partial.

The other half is proving a negative, and it is the part of DNSSEC that is genuinely clever and genuinely awkward. Signing a record that exists is straightforward. Proving that a name does not exist means signing a statement about a gap, and the original design does this with NSEC records that name the next existing name in the zone, in order. It works, and it lets anybody walk the entire zone one query at a time by following the chain, which is a zone transfer by other means and was not what most operators wanted.

NSEC3 replaced the names with hashes of names to stop that, and made the enumeration expensive rather than free, since the hashes can still be attacked offline. The current answer for large zones is to sign the denial when it is asked for rather than in advance, which needs the key online and is the trade most large providers now make.

None of the three is on the exam. The reason to know it is that “signed” is not one property, and a question about what DNSSEC guarantees has a more careful answer than a question about what TLS guarantees.

Across platforms

Encrypted DNS is configured per machine, and the three platforms are at three different points.

On Linux, systemd-resolved supports DNS over TLS and can be set to opportunistic or strict mode, and every browser ships its own DNS over HTTPS setting that bypasses the system resolver entirely.

On macOS, the system resolver supports encrypted DNS through configuration profiles, and the command line tool in the base system is old enough to have no idea what you are asking for.

# macOS 26.5.2, arm64
$ dig -v 2>&1 | head -1
DiG 9.10.6

# Ask it to use DNS over TLS and see whether it recognises the request
$ dig +tls example.com 2>&1 | head -2
Invalid option: +tls
Usage:  dig [@global-server] [domain] [q-type] [q-class] {q-opt}

# What the system resolver is configured to do, which is a separate question
$ scutil --dns | grep -iE "flags|reach" | head -3
  flags    : Request A records
  reach    : 0x00020002 (Reachable,Directly Reachable Address)
  flags    : Request A records

On Windows, the client carries a list of resolvers it already knows how to reach over HTTPS, so turning it on is a matter of choosing one.

# Microsoft Windows Server 2025 Datacenter, version 10.0.26100.0
> Get-DnsClientDohServerAddress | Format-Table ServerAddress, DohTemplate, AutoUpgrade -AutoSize
ServerAddress        DohTemplate                          AutoUpgrade
-------------        -----------                          -----------
149.112.112.112      https://dns.quad9.net/dns-query            False
9.9.9.9              https://dns.quad9.net/dns-query            False
8.8.8.8              https://dns.google/dns-query               False
8.8.4.4              https://dns.google/dns-query               False
1.1.1.1              https://cloudflare-dns.com/dns-query       False
1.0.0.1              https://cloudflare-dns.com/dns-query       False
2001:4860:4860::8844 https://dns.google/dns-query               False
2001:4860:4860::8888 https://dns.google/dns-query               False
2606:4700:4700::1001 https://cloudflare-dns.com/dns-query       False
2606:4700:4700::1111 https://cloudflare-dns.com/dns-query       False
2620:fe::9           https://dns.quad9.net/dns-query            False
2620:fe::fe          https://dns.quad9.net/dns-query            False

# Whether encrypted DNS is currently switched on for any interface
> Get-DnsClientDohServerAddress | Measure-Object | Select-Object -ExpandProperty Count
12

That list is the interesting artefact. Twelve entries, three operators, each paired with the URL template to use for it, and AutoUpgrade false against all of them, which means the machine is currently using plain DNS to servers it knows it could be reaching privately. Switching that column to true is the whole configuration.

Prove it

Check whether a domain is signed. dig +dnssec any domain and look for RRSIG records in the answer. Most are not signed, which is worth seeing.

Find the ad flag. Ask a validating resolver, such as 1.1.1.1 or 9.9.9.9, for a signed domain and look at the flags line.

Query over TLS. kdig +tls or a recent dig +tls against a public resolver that supports it, with a capture running. Compare what you can see against the same query on port 53.

What trips people up

1. Thinking DNSSEC encrypts anything

It signs. Every question and answer stays readable on the wire, and that is by design, because the signature has to survive caching.

2. Thinking DoT or DoH proves the answer is correct

They prove you are talking to the resolver you meant and that nobody in between altered the conversation. They say nothing about whether the resolver’s answer is what the zone owner published.

3. Expecting a validation failure to give a warning

A validating resolver that cannot verify an answer returns SERVFAIL. It cannot tell which part is wrong, so it passes nothing on.

4. Assuming a signed zone is safer to operate

It has a new failure mode. An expired signature or a key rolled without updating the parent takes the domain down for validating resolvers and leaves it working for everybody else.

5. Reading the DoH argument as being about encryption

Both protocols encrypt the same content the same way. The argument is that port 443 cannot be blocked selectively, which moves control of resolution from the network operator to the application.

6. Forgetting that the resolver still sees everything

Neither mechanism hides the question from the server answering it. Encrypted transport changes who knows, not whether anybody does.

Work it through

The convincing login page, at the correct address, in a signed zone.

The first move is to be precise about what the signatures proved. DNSSEC guarantees that the records a resolver returned are the records the zone owner published. If validation passed, then the address that came back is the address in the zone. That is a strong statement and it is narrow.

So there are two families of explanation and they are very different problems.

Either the answer was correct and the resolution was never the attack. The user followed a link to a name that looks right and is not, and the address in the browser being correct is a claim about what they read rather than about what was resolved. A homograph or a plausible neighbouring domain resolves correctly, is signed correctly, and belongs to somebody else. Nothing in DNS is broken and DNS was never involved.

Or the records in the zone genuinely say what the user reached, which means the zone was edited. That is a compromise of the account that manages the domain, or of the registrar, and it is worse than a spoofing attack because every signature will keep validating perfectly. DNSSEC signs whatever is in the zone, including whatever an attacker put there.

Both of those are outside what any of the transport protections cover, and that is the useful lesson rather than a technicality. Encrypting the query would not have helped. Validating the signature did not help, and did its job.

For the investigation, the fork is quick. Get the exact name from the user, not their description of it, and resolve it yourself. If it is not your domain, the problem is a phishing message and the response is a mail and awareness one. If it is your domain, pull the zone’s current contents and its change history, and treat it as a compromised account with the registrar until proven otherwise.

And there is a control worth having in place before this happens: registrar lock, and multifactor authentication on the account that can change the zone. Topic 35’s argument about the account nobody removed applies with unusual force to a domain registrar, because that one account can redirect everything at once, and every protection on this page will faithfully certify the result.

Try it

Sign a zone in a lab. Any zone, any name, then break one record and watch a validating resolver stop answering. Doing it once removes the mystery.

Capture your own DNS. On any network you control, watch port 53 for a minute and read the names. It is a persuasive demonstration to show somebody who thinks DNS is not sensitive.

Turn on encrypted DNS and watch what breaks. On a machine that uses internal names, enable DNS over HTTPS in the browser and see which internal sites stop working. That is the split horizon problem, first hand.

Check yourself

What does DNSSEC prove, and what does it not?

It proves that the records in an answer are the records the zone owner published, and that they have not been altered in transit or in a cache. The signature travels with the data, so it can be checked by anybody who receives it, however many caches it passed through.

It does not encrypt anything. The question, the answer and who asked are all readable on the wire exactly as they would be without it. It also says nothing about whether the contents of the zone are correct, only that they are genuinely what the zone contains.

A record in a signed zone is edited without re-signing. What does a validating resolver do?

It returns SERVFAIL. The signature no longer matches the data, so the resolver cannot verify the answer, and it has no way to tell which of the two is wrong.

That means it returns nothing at all rather than the old value or a warning. The domain then fails for everybody whose resolver validates and works normally for everybody whose resolver does not, which is a distinctive symptom.

What is the practical difference between DNS over TLS and DNS over HTTPS?

Not the cryptography. Both put ordinary DNS messages inside TLS and conceal the same content from anybody on the path.

The difference is the port. DNS over TLS uses 853, which an organisation can block or redirect to force its own resolver to be used. DNS over HTTPS uses 443, where it is indistinguishable from web traffic and cannot be blocked without breaking the web, which moves the choice of resolver from the network to the application.

Internal sites stop resolving on one laptop while public sites work. What is worth checking first?

Whether something on that machine has started using encrypted DNS to a public resolver. A browser with DNS over HTTPS enabled bypasses the system resolver entirely, and a public resolver has no knowledge of internal names.

That is the split horizon problem: the organisation answers internal names differently on the inside, and a machine that stopped asking the internal resolver stops getting those answers. Nothing on the network changed, which is what makes it confusing.

Why was source port randomisation, rather than DNSSEC, the fix that actually deployed against cache poisoning?

Because it could be deployed unilaterally and immediately. A resolver accepts an answer that matches the query identifier, the question and the source address, and the identifier is only 16 bits. Randomising the source port as well takes the search space to roughly 32 bits, which makes the race expensive rather than practical.

It is a mitigation rather than a proof, and it required no cooperation from zone owners. DNSSEC is the actual solution and needs the zone signed at the other end, which is why deployment is still partial decades later.

References

  • RFC 4033 - IETF, the DNSSEC introduction, on what the extensions do and explicitly do not provide. Free. Accessed 2026-08-13.
  • RFC 4035 - IETF, the protocol modifications, including the authenticated data flag and the behaviour on validation failure. Free. Accessed 2026-08-13.
  • RFC 7858 - IETF, DNS over TLS and the assignment of port 853. Free. Accessed 2026-08-13.
  • RFC 8484 - IETF, DNS over HTTPS. Free. Accessed 2026-08-13.
  • RFC 5452 - IETF, on forged answers and the randomisation measures that answer them. Free. Accessed 2026-08-13.
  • RFC 5155 - IETF, NSEC3, referenced in the deeper panel on proving a name does not exist. Free. Accessed 2026-08-13.

Pictures. A freely licensed file from Wikimedia Commons, downloaded and served from this site rather than linked across to somebody else’s server. Resized and otherwise unaltered.

Where the output came from. Both Linux blocks ran on the dns-secure namespace topology through blog/scripts/netlab.sh. The zone is signed with keys generated during the build, and the resolver is given the zone’s key-signing key as a trust anchor rather than following the chain of DS records up through the parents. That is a shortcut and it is worth naming: validation below the anchor is the real algorithm and produces the real failure, and what is skipped is the part that would need three more signed zones to demonstrate the same point. The tampering is a one character edit to the signed zone file followed by a reload, which is exactly the shape of the mistake it stands in for. The Windows and macOS blocks came from GitHub Actions runners through blog/scripts/hostcap.sh.

If you also work on Linux. TLS certificates and ACME on the Linux+ track covers the other public key hierarchy a name depends on, and the two are worth holding apart: that one proves you reached the right server, this one proves you were told the right address.
