How Linux boots

From the power button to the login prompt

Lesson 9 of 76·Working knowledge·24 min read·updated ·linuxlinux-plusbootgrubsystemd

On the examCompTIA Linux+ XK0-006 (V8)

  • 1.1Explain basic Linux concepts.Domain 1.0 System Management·23% of the exam

All 29 objectives, and which are covered

Before this

What you will be able to do

  • Name the five boot stages in order and say what each one hands to the next
  • Explain what UEFI does differently from BIOS, and where the bootloader lives in each
  • Say what the initramfs is for and why a system can boot without one only sometimes
  • Read a kernel command line and change it for one boot

Before you read. You press the power button. A few seconds later you get a login prompt.

In between, at least five separate programs ran, each one loading the next and then getting out of the way. None of them is the operating system, exactly, and the last one only starts once the first four have all done their jobs.

Here is the question worth holding: if the disk holding your operating system needs a driver to be read, and that driver is a file on that disk, how does the first one ever get loaded?

That is a genuine chicken-and-egg problem and it has a specific, elegant answer, which is the most interesting thing in this lesson. Everything else here is sequence, and sequence is easy once you have seen it once.

The practical payoff: when a machine will not boot, the symptom tells you which stage failed, and that narrows “the server is dead” to one of five places.

Some words you will need

firmware
Software built into the machine itself, running before any disk is read. BIOS on older hardware, UEFI on anything modern.
bootloader
A small program whose only job is to find a kernel, load it into memory, and start it. Almost always GRUB.
kernel
The core of the operating system. Talks to hardware, manages memory and processes. Everything else is a program running on top of it.
initramfs
A small temporary filesystem loaded into memory alongside the kernel, holding just enough drivers to reach the real disk.
target
A named state systemd brings the machine to, such as "multi-user" or "graphical". The rough equivalent of the old runlevels.

What breaks without this

An unbootable machine is unfixable. Not because the fix is hard, but because you cannot tell whether the problem is the firmware setting, the bootloader config, a missing kernel, a broken initramfs, or a failed service. Those have five different fixes and one identical symptom: a black screen.

You cannot change a kernel parameter. Recovering a lost root password, booting a previous kernel, or disabling a driver that hangs the machine all happen by editing the boot entry, which requires knowing which stage reads it.

You reboot hopefully. The most expensive habit in this business is rebooting a production machine without knowing whether it will come back.

The five stages

The five stages of a Linux boot, in order Firmware runs first and finds a bootloader: UEFI reads a .efi file from the EFI System Partition, while legacy BIOS reads the first 512 bytes of the disk. The bootloader, usually GRUB, loads the kernel and the initramfs from /boot. The kernel starts and mounts the initramfs as a temporary root. The initramfs loads the drivers needed to reach the real root filesystem, mounts it, and switches to it. Finally systemd, process ID 1, starts services until the default target is reached. 1. firmware UEFI or BIOS UEFI: a .efi file on the EFI System Partition BIOS: the first 512 bytes of the disk 2. bootloader GRUB loads a kernel and an initramfs from /boot the kernel command line is edited here 3. kernel vmlinuz mounts the initramfs as a temporary root no drivers yet, so the real disk is unreachable 4. initramfs in memory loads drivers for the real root: RAID, LVM, encryption switches to the real root, then disappears 5. systemd PID 1 starts units in dependency order stops at the default target, login prompt appears
Each stage exists only to start the next one, then gets out of the way. The initramfs is the clearest case and the one drawn dashed: a temporary root whose whole job is loading the drivers needed to reach the real one, gone well before you see a login prompt.

The handover is the thing to remember. Each stage knows almost nothing except how to find and start the next one. That is why a boot failure is diagnosable: whatever you saw last tells you which stage was still alive.

The chicken and the egg

Back to the question at the top. Your root filesystem might be on an LVM logical volume, on top of a RAID array, on top of an NVMe disk, possibly encrypted. The kernel needs drivers for every one of those layers. Those drivers are files. They live on the filesystem the kernel cannot yet read.

The initramfs is the answer. The bootloader loads two files into memory: the kernel, and a small compressed archive containing exactly the drivers this machine needs to reach its own root filesystem. The kernel mounts that archive as a temporary root, runs the tools inside it to assemble the RAID, activate the LVM, unlock the encryption, and mount the real root. Then it switches to the real root and the temporary one is discarded.

So the drivers arrive in memory, alongside the kernel, before any disk is readable. The egg was carried in.

Two consequences worth carrying:

  • The initramfs is built for this machine. It is not part of the kernel package. Change the storage layout without rebuilding it and the machine will not boot, which is the single most common self-inflicted boot failure there is.
  • A machine with a plain root filesystem on a driver the kernel has built in can boot without one. Rare on a general-purpose distribution, common in embedded systems and appliances.
If you already administer Linux: building the initramfs, and looking inside one

dracut builds it on the RHEL family; update-initramfs wraps mkinitramfs on Debian. dracut -f rebuilds for the running kernel and dracut --regenerate-all -f does every installed kernel, which is what you actually want after changing the storage stack, rebuilding only the running kernel leaves the others unbootable and you find out at the next update.

lsinitrd lists what went in. It is the fast way to answer “does this initramfs contain the driver for the card we just fitted”, and it beats rebooting to find out. lsinitrd -f /etc/fstab even prints a file from inside it, which is how you check what the early boot thinks the storage layout is.

Host-only versus generic is the setting that catches people out. The default is host-only: an image containing just the drivers this machine needs, which is small and fast and completely unusable if the disk is moved to different hardware. dracut --no-hostonly produces a larger image that boots anywhere, and it is what you want for golden images, rescue media, and anything that might be restored onto a different server than it came off.

rd. is the prefix for dracut’s own kernel parameters. rd.break stops at a chosen point in early boot and hands you a shell: rd.break=pre-mount is the one for debugging why root will not mount. rd.debug makes it noisy. Both go on the kernel command line, which is the next section.

If you already administer Linux: why there is an initramfs at all, and what is inside it

The five stages have one that looks redundant: the kernel loads a small filesystem into memory, uses it, and then throws it away to mount the real root. Why not mount the real root directly?

Because of a circular dependency. To mount / the kernel needs a driver for the controller the disk is on, a driver for the filesystem, and possibly LVM, RAID, multipath, or LUKS assembled first. Those drivers are modules. Modules live in /lib/modules, which is on /. The kernel cannot reach the thing it needs to reach that thing.

The initramfs breaks the cycle. It is a compressed cpio archive containing just enough userspace, a shell, udev, the storage modules, and the tools to assemble whatever / sits on top of. The kernel unpacks it into a tmpfs, runs /init from it, and that assembles the real root and pivots to it.

You can look inside one:

lsinitrd /boot/initramfs-$(uname -r).img | head -30      # RHEL family
lsinitrd /boot/initramfs-$(uname -r).img -f etc/cmdline.d/*.conf
unmkinitramfs /boot/initrd.img-$(uname -r) /tmp/x        # Debian family

The alternative to building one is compiling every needed driver into the kernel itself, which is what an embedded system with fixed hardware does. A general distribution cannot, because it does not know whether your root is on NVMe, iSCSI, or an encrypted volume on a RAID set, and building all of it in would produce an enormous kernel that loads drivers for hardware nobody has.

The operationally important consequence is that the initramfs is machine state, not vendor state. It is generated locally, and it goes stale:

  • Add a storage driver, a LUKS volume, or a RAID set and the initramfs needs rebuilding or the machine will not find its root.
  • Blacklist a module in /etc/modprobe.d and it is ignored until you rebuild.
  • Change the root filesystem’s UUID, which mkfs does, and the reference baked into both GRUB and the initramfs is wrong.

dracut -f and update-initramfs -u are the rebuild commands, and both are worth running before rebooting a machine whose storage you have touched. A broken initramfs presents as dracut-initqueue timeout and a dracut emergency shell, which is a recognisable enough failure that spotting it saves an hour.

Where the bootloader lives

UEFI and BIOS differ in exactly one way that matters here: how the firmware finds the bootloader.

Legacy BIOS UEFI
Where the firmware looks First 512 bytes of the disk (the MBR) A FAT partition called the EFI System Partition
What it finds there 446 bytes of code, which loads more code A normal file, such as grubx64.efi
Partition table MBR, four primary partitions, 2 TB limit GPT, 128 partitions, huge disks
Boot entries stored in Nowhere; there is one MBR The firmware’s own NVRAM, editable from Linux

The UEFI arrangement is better in a way you can feel: the bootloader is a file on a filesystem, which you can list, copy, and back up, rather than raw bytes in a place with no filenames.

Here is a real UEFI disk layout:

# Fedora CoreOS 44.20260707.3.1 on a virtual machine, aarch64
$ lsblk -f
NAME   FSTYPE FSVER LABEL      UUID                                 FSAVAIL FSUSE% MOUNTPOINTS
vda
├─vda1
├─vda2 vfat   FAT16 EFI-SYSTEM 7B77-95E7
├─vda3 ext4   1.0   boot       ec4a7bbc-82cf-4c92-a421-381dd40c0e0c  167.7M    45% /boot
└─vda4 xfs          root       159ca8aa-2ced-4891-90cc-0bde469c40f8   94.4G     5% /var
                                                                                   /sysroot/ostree/deploy/fedora-coreos/var
                                                                                   /sysroot
                                                                                   /usr
                                                                                   /etc
                                                                                   /

Read it from the top. vda2 is vfat and labelled EFI-SYSTEM. That is the EFI System Partition, and it is FAT because FAT is the one filesystem every UEFI implementation is required to understand. vda3 is /boot, holding the kernel and initramfs. vda4 is the root filesystem. That three-partition shape is what a modern install looks like.

Two things about this particular machine, so the output does not mislead you. It is aarch64 rather than x86_64, which changes the bootloader filename from grubx64.efi to grubaa64.efi and nothing else. And it is an image-based system, which is why vda4 lists six mount points instead of one: /, /etc, /usr, and /var are all the same filesystem presented at several places at once. On an ordinary server that column would say / and stop. It does illustrate something true and worth noticing early, though, a mount point is not a disk, and one filesystem can appear in more than one place.

The firmware’s own list of boot entries is readable from Linux:

# Fedora CoreOS 44.20260707.3.1 on a virtual machine, aarch64
$ sudo efibootmgr | head -8
BootCurrent: 0000
Timeout: 0 seconds
BootOrder: 0005,0000,0001,0002,0003,0004
Boot0000* UEFI Misc Device	PciRoot(0x0)/Pci(0x6,0x0){auto_created_boot_option}
Boot0001* UEFI Non-Block Boot Device	PciRoot(0x0)/Pci(0x7,0x0){auto_created_boot_option}
Boot0002* UEFI Non-Block Boot Device 2	PciRoot(0x0)/Pci(0x8,0x0){auto_created_boot_option}
Boot0003* UEFI Non-Block Boot Device 3	PciRoot(0x0)/Pci(0x9,0x0){auto_created_boot_option}
Boot0004* UEFI Non-Block Boot Device 4	PciRoot(0x0)/Pci(0xa,0x0){auto_created_boot_option}

BootOrder is the sequence the firmware will try. BootCurrent is the one that actually worked this time. On a machine that boots the wrong thing, those two lines are the fastest diagnosis available, and efibootmgr -o reorders them without going into the firmware setup screen.

If you already administer Linux: grub.cfg is generated, and Secure Boot's real consequence

Never edit /boot/grub2/grub.cfg by hand. It is generated, and the next kernel update overwrites it, which gives you a machine that boots correctly for three weeks and then does not. Edit /etc/default/grub for global settings, drop files into /etc/grub.d/ for entries, then regenerate with grub2-mkconfig -o /boot/grub2/grub.cfg on the RHEL family or update-grub on Debian.

Recent RHEL-family releases have moved further, generating BootLoaderSpec entries under /boot/loader/entries/, one small file per kernel, with grubby --info=ALL and grubby --update-kernel as the supported way to change them. On those systems editing grub.cfg is doubly pointless, because the menu is assembled from the entry files at boot.

Secure Boot has the firmware verify the bootloader’s signature, the bootloader verify the kernel’s, and the kernel verify module signatures. Distributions ship a small signed shim that chains to their own GRUB, because the shim is what Microsoft’s key has signed.

The practical consequence is not about booting at all: it is that an out-of-tree module (a proprietary graphics driver, a vendor storage driver) silently refuses to load until you enrol your own key with mokutil --import. The failure presents as the hardware simply not being there, with nothing on screen mentioning signatures. mokutil --sb-state tells you whether Secure Boot is on, and it is the first thing to check when a driver that installed cleanly does nothing.

The kernel command line

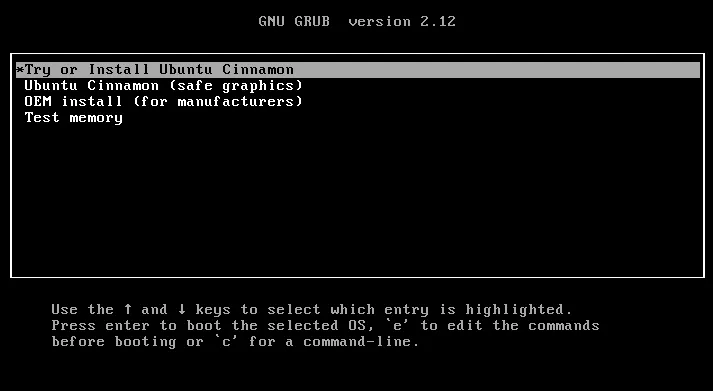

A GRUB boot menu on a black screen. The header reads GNU GRUB version 2.12. Four entries are listed in a bordered box, the first highlighted: Try or Install Ubuntu Cinnamon, Ubuntu Cinnamon in safe graphics mode, OEM install for manufacturers, and Test memory. Below the box, three lines of help text explain that the up and down arrow keys move the highlight, enter boots the selected entry, the e key edits the commands before booting, and the c key opens a command line.

Stage two, on the screen. Most people never see this because a working machine flashes past it, and every one of the four entries points at a different kernel and command line rather than a different operating system. The help text at the foot is the part worth memorising: e edits the entry before it boots, which is how you recover a machine whose command line is wrong, and c drops to a GRUB command line for when the configuration itself is broken. Photo by Miquel Adroer, CC BY-SA 4.0.

The bootloader passes the kernel a line of text. That line decides a surprising amount, and it is readable after the fact, including the one thing the kernel cannot discover for itself.

The kernel has just been loaded into memory and has no filesystem yet. There is one piece of information it absolutely must be told rather than work out. What is it, and can you spot it in the line below?
# Fedora CoreOS 44.20260707.3.1 on a virtual machine, aarch64
$ cat /proc/cmdline
BOOT_IMAGE=(hd0,gpt3)/boot/ostree/fedora-coreos-b03a2111206afe90841d87f839937afc8dce4e7fa9e11e5ac0c314f03439c33f/vmlinuz-7.1.3-200.fc44.aarch64 rw ignition.firstboot ostree.prepare-root.composefs=0 ostree=/ostree/boot.1/fedora-coreos/b03a2111206afe90841d87f839937afc8dce4e7fa9e11e5ac0c314f03439c33f/0 ignition.platform.id=applehv console=tty0 console=hvc0

Which filesystem to mount as /. Everything else on that line is a preference; that one is the bootstrap problem. The kernel cannot look up the root filesystem in a configuration file, because configuration files live on the root filesystem. Here it is the ostree= parameter doing the job; on an ordinary server it is root=UUID=..., and a wrong or missing value is the single most common cause of a kernel panic at boot.

That is a long one, because this machine is an image-based system with its own parameters. On an ordinary server it looks more like root=UUID=... ro quiet. The parts that matter to you are the same either way:

Parameter Does
root=UUID=... Which filesystem to mount as /
ro / rw Mount it read-only at first, or read-write
quiet Suppress kernel messages; remove it to watch the boot
single or rescue Boot to a minimal single-user state
init=/bin/bash Skip systemd entirely and run a shell as PID 1
nomodeset Skip graphics mode setting, for a machine that boots to a black screen

init=/bin/bash is the classic lost-root-password recovery. You edit the boot entry in the GRUB menu, add it, boot, and land in a root shell with no authentication, because nothing that authenticates has started yet. It also explains why physical access is effectively root access, and why encrypted disks and a GRUB password exist.

Editing in the GRUB menu is per-boot: press e, change the line, press Ctrl+X. Nothing is written to disk, so a mistake is fixed by rebooting.

If you already administer Linux: making a kernel parameter permanent, on each family

The per-boot edit is the right tool for testing and the wrong one for anything you want to keep. Three ways to persist it, and picking the wrong one is a common source of “I set that and it did not stick”.

RHEL family, current releases: grubby edits the BootLoaderSpec entries directly, which is the supported path.

sudo grubby --update-kernel=ALL --args="transparent_hugepage=never"
sudo grubby --update-kernel=ALL --remove-args="quiet"
sudo grubby --info=ALL | grep args

--update-kernel=ALL matters: applying it only to the running kernel leaves the next one without it, and the setting quietly disappears at the following update.

Either family, via the template: add it to GRUB_CMDLINE_LINUX in /etc/default/grub, then regenerate. This is the one that survives a grub2-mkconfig, because it is the input that generation reads.

Verify by reading it back, not by trusting the command. After a reboot, cat /proc/cmdline is the only thing that proves the kernel received it. A parameter can be present in the config, absent from the entry, and missing from the running kernel, and only the third one matters.

Worth knowing which parameters are worth persisting at all: nomodeset for a machine that boots to a black screen, transparent_hugepage=never for several databases that document it, elevator= on older kernels, and systemd.unit=rescue.target as a permanent choice on an appliance. Most other things belong in configuration rather than on the command line.

Given the five stages, at which one does init=/bin/bash take effect, and why does that mean no password is required?

Stage 5, or rather instead of it. The kernel starts one process when it has finished mounting the real root, and init= names which program that is. Normally it is systemd. Set to /bin/bash, you get a shell as PID 1.

No password is required because nothing that could ask for one has started yet. Logins are handled by services, services are started by systemd, and systemd is exactly the thing you have just replaced. There is no login prompt to get past because there is no login service running.

The consequence is worth stating plainly: anyone who can reach the GRUB menu of an unencrypted machine can become root on it. Full-disk encryption and a GRUB password are the two things that change that, and physical security is the third.

systemd takes over

The kernel starts exactly one process. That process is PID 1, it is systemd on every distribution this exam covers, and everything else on the machine descends from it.

systemd reads what the default target is and works backwards through dependencies to start what is needed:

# Fedora CoreOS 44.20260707.3.1 on a virtual machine, aarch64
$ systemd-analyze; systemctl get-default
Startup finished in 392ms (kernel) + 5.307s (initrd) + 3.637s (userspace) = 9.337s
multi-user.target reached after 3.486s in userspace.
multi-user.target

That first line is the whole lesson in one command. Three numbers, one per phase: the kernel took 392 milliseconds, the initramfs took 5.3 seconds, and userspace took 3.6 seconds. A slow boot is one of those three, and you now know which.

multi-user.target is a server booted to a text login with networking. The alternative you will meet is graphical.target. Two others matter: rescue.target for single-user with a root shell, and emergency.target for the absolute minimum when even that will not start.

If you already administer Linux: reading a slow boot, and the order of the emergency options

systemd-analyze blame is the obvious tool and frequently the wrong one. It sorts units by how long each took, which is not the same as what delayed the boot: a unit taking 30 seconds in parallel with everything else costs nothing. systemd-analyze critical-chain shows the actual dependency path that determined the finish time, and that is where the fix is. systemd-analyze plot > boot.svg draws the whole thing when the chain is not obvious.

A slow initrd phase is nearly always waiting rather than working. A device that never appears, a network mount attempted too early, or a root= naming something that is not there. The time is a timeout expiring. systemd-analyze splitting the boot into kernel, initrd, and userspace is what lets you tell that apart from a genuinely slow service, in one command.

The order of the emergency options, when a machine will not come up at all, from most to least hospitable:

rescue.target first, mounts the local filesystems, starts a minimal set of services, and gives you a root shell with a working system underneath.

emergency.target next, a read-only root and almost nothing else. Reach for it when rescue cannot get far enough, and expect to mount -o remount,rw / before you can change anything.

init=/bin/bash last, and only when the other two fail, because at that point there is no /proc, no /sys, no writable root, and no systemd. Mounting those by hand is the first thing you will need to do, and forgetting /proc makes every subsequent tool behave strangely for reasons that are not obvious.

All three are typed onto the kernel command line at the GRUB menu, which is why the previous section matters more than it looks.

Across distributions

RHEL family Debian family
GRUB config /boot/grub2/grub.cfg /boot/grub/grub.cfg
Regenerate it grub2-mkconfig -o ... update-grub
Global settings /etc/default/grub /etc/default/grub
Build the initramfs dracut -f update-initramfs -u
Per-kernel entries grubby, /boot/loader/entries/ /boot/grub/grub.cfg
Commands are prefixed grub2- grub-

That grub2- prefix is a real trap. Every command on the RHEL family is grub2-mkconfig, grub2-install, grub2-editenv; on Debian they are grub-mkconfig, grub-install. Same software, and a runbook that hardcodes one fails on the other with command not found.

Prove it

After any change to the bootloader, the kernel, or the storage layout:

# What the running kernel was actually told
cat /proc/cmdline

# Which kernels are installed and which is default
sudo grubby --info=ALL | grep -E '^(kernel|index)'   # RHEL family

# Where the time went on the last boot
systemd-analyze
systemd-analyze blame | head

# Anything that failed to start
systemctl --failed

And the one that matters most: reboot while you can still get to the machine another way. Discovering a boot problem at the next unplanned restart, six weeks later, is how a five-minute fix becomes an outage.

What trips people up

1. GRUB rescue, or no menu at all

grub rescue> means GRUB started but cannot find its own configuration or modules. The disk moved, the partition was resized, or grub-install was never run after a change.

You are still at stage 2, which is good news: the firmware found something. Boot rescue media, mount the root filesystem, chroot into it, and re-run grub2-install plus grub2-mkconfig.

No menu at all and no GRUB message means stage 1 failed. The firmware did not find a bootloader. Check the boot order with efibootmgr, and check the machine is not set to boot from a disk you removed.

2. Dropped into an initramfs emergency shell

A prompt that says dracut:/# or (initramfs) means stage 4 is running and could not find or mount the real root.

Almost always one of: the root device UUID changed and /etc/fstab or the kernel command line still names the old one; the initramfs is missing a driver for a storage layout that changed; or the filesystem needs a check it cannot do automatically.

cat /proc/cmdline to see what root it was told to find, then blkid to see what is actually there. The two disagreeing is the answer most of the time.

3. Changing the storage layout without rebuilding the initramfs

You add a RAID array, move root onto LVM, or enable encryption. Everything works perfectly until the reboot, and then stage 4 cannot assemble the thing you built.

The initramfs was built before the change and does not contain the tools. Rebuild it, dracut -f or update-initramfs -u, before rebooting.

4. Editing grub.cfg directly

It works, and it is overwritten by the next kernel update, which is a delightful way to have a machine boot correctly for three weeks and then not.

Edit /etc/default/grub, then regenerate.

5. Confusing the initramfs with /boot

They are related and not the same. /boot is a directory on a real filesystem holding the kernel and the initramfs file. The initramfs is an archive that gets unpacked into memory. A full /boot prevents a new initramfs being written; a broken initramfs prevents the real root being mounted. Different failures, different fixes.

Work it through

A server was working. Somebody moved the root filesystem onto a new LVM volume, copied the data across, updated /etc/fstab, verified the mount, and rebooted.

It now stops at a prompt reading dracut:/#.

Reason it out before reading on.

Which stage are we in? The prompt names it: dracut builds the initramfs, so this is the initramfs emergency shell. That means stages 1, 2, and 3 all succeeded, the firmware found the bootloader, the bootloader loaded the kernel, the kernel started and mounted the initramfs. We are at stage 4.

What does stage 4 do? It loads the drivers needed to reach the real root, then mounts it. It has failed at one of those two.

Why would it fail here specifically? Because root moved onto LVM. Activating an LVM volume needs the LVM tools and the device-mapper module, and the initramfs on this machine was built when root was a plain partition, so it contains neither. The kernel is fine, the volume is fine, the fstab is fine. The thing that has to assemble the volume before any of that matters does not know how.

Was /etc/fstab the problem? No, and this is the part worth slowing down on. /etc/fstab lives on the root filesystem. Nothing has read it, because reading it requires mounting the filesystem it is on. It gets consulted at stage 5, and we never got there.

The fix. From the dracut shell, or better from rescue media: activate the volume group by hand (lvm vgchange -ay), mount the real root, chroot into it, and rebuild the initramfs with dracut -f. Then reboot.

The habit. Rebuild the initramfs as part of any change to the storage underneath root, in the same maintenance window, before the reboot that proves it. The rule generalises: anything the machine needs to reach its own root filesystem has to be in the initramfs, because at that moment nothing else is available.

Try it

Optional, and best on a virtual machine you can break.

  1. systemd-analyze and systemd-analyze blame. Say which of the three phases dominates and what the slowest unit is.
  2. cat /proc/cmdline. Identify the root device and whether quiet is set.
  3. Reboot, press e at the GRUB menu, remove quiet, and boot with Ctrl+X. Watch the kernel messages. Nothing was saved, so the next boot is unchanged.
  4. ls /boot. Find the vmlinuz- and initramfs- (or initrd.img-) pair, and note there is one of each per installed kernel.
  5. systemctl get-default, then systemctl list-units --type=target --state=active.
  6. If the machine is UEFI, sudo efibootmgr -v and read the boot order.

Verification step. You have it when you can look at a stuck boot and name the stage from the symptom alone, before touching anything.

Check yourself

Name the five stages in order, and say what each one hands to the next.

Firmware tests the hardware and finds a bootloader, from the EFI System Partition under UEFI, or the MBR under legacy BIOS.

Bootloader (GRUB) reads its config, shows a menu, and loads two files from /boot into memory: the kernel and the initramfs. It also hands the kernel its command line.

Kernel takes over the hardware and mounts the initramfs as a temporary root, because it cannot reach the real one yet.

initramfs loads the drivers for the real root (disk, RAID, LVM, encryption) mounts it, switches to it, and is discarded.

systemd starts as PID 1 and brings the machine to its default target.

The handover is what makes boot failures diagnosable: whatever you saw last tells you which stage was still alive.

Why does an initramfs exist at all? Answer with the specific problem it solves.

The drivers needed to read the root filesystem are files on the root filesystem. The kernel cannot load them from a disk it cannot yet read.

The initramfs breaks the circle by arriving in memory alongside the kernel, loaded by the bootloader from /boot. It contains exactly the modules and tools this machine needs to reach its own root: the disk controller driver, plus whatever assembles RAID, activates LVM, or unlocks encryption.

Once the real root is mounted, the system switches to it and the initramfs is thrown away.

The operational consequence: it is built for this machine’s storage layout, so changing that layout without rebuilding it produces a machine that will not boot.

A machine stops at dracut:/#. Which stages are known good, and what are the two likeliest causes?

Stages 1 through 3 are known good. The firmware found a bootloader, GRUB loaded a kernel, and the kernel started and mounted the initramfs. You are looking at a shell that only exists because stage 4 got far enough to run.

The two likeliest causes:

The root device it was told to find is not there, a UUID changed after a reinstall, a restore, or a disk swap, and the kernel command line still names the old one. cat /proc/cmdline against blkid settles it in seconds.

The initramfs lacks a driver for the storage layout, root moved onto LVM, RAID, or an encrypted volume and the image was never rebuilt.

Note what is not a candidate: anything in /etc/fstab or any service, because neither has been read. /etc/fstab lives on the filesystem that has not been mounted.

Why does init=/bin/bash get you a root shell with no password, and what defends against it?

init= tells the kernel which program to run as PID 1 once the real root is mounted. Normally that is systemd, which starts the services that provide login and authentication. Replace it with a shell and none of those services ever start, so there is nothing to authenticate against.

You get a root shell because PID 1 has always run as root; no privilege was escalated, you simply chose a different first program.

Three defences, in increasing strength: a GRUB password stops the menu being edited; full-disk encryption means the root filesystem cannot be mounted at all without the passphrase; physical security covers the case where somebody removes the disk entirely.

This is why “physical access is root access” is the usual shorthand, and why an unencrypted laptop is a data-loss incident rather than a hardware loss.

systemd-analyze reports 400ms kernel, 22s initrd, 3s userspace. Where is the problem and where is it not?

The initramfs phase, at 22 seconds out of 25. The kernel and userspace are both normal.

That points at stage 4 waiting for something: a device that is slow to appear, a RAID array being assembled, a network mount attempted before the network is ready, or, very commonly, a device named in the boot configuration that does not exist, where the delay is a timeout expiring rather than work being done.

Where it is not: any service you might be suspicious of. Services start in userspace, and userspace took 3 seconds. systemd-analyze blame would confirm by showing nothing in userspace taking meaningful time.

The three numbers are worth reading before anything else, because they turn “the boot is slow” into one of three much smaller questions.

References

Pictures. The screenshot on this page is a freely licensed file from Wikimedia Commons, downloaded and served from this site rather than linked across to somebody else’s server. It is unaltered.

Every block above with a distribution and architecture header was captured by running the command on a Fedora CoreOS 44.20260707.3.1 virtual machine. Blocks without one are illustrative.
