The boxes on a network

Before you read. A cupboard in a small office holds six devices. Nobody who works there can tell you what any of them do. They were installed by a contractor, they have blinking lights, and one of them is warm.

You are asked which one to unplug to stop a machine reaching the internet.

What would you need to know about each box to answer that?

Not what it is called. What it reads.

Every device on a network receives a frame and has to decide what to do with it, and the decisive difference between one box and the next is how far into that frame it looks before deciding. A device that reads two fields is fast and ignorant. A device that reads the whole thing can make decisions the first one could not express, and pays for it.

Sort the cupboard that way and the names stop being a vocabulary test.

Some words you will need

appliance

A device built for one network job. It may be a physical box or software doing the same work.

inline

Sitting in the traffic path, so everything passes through it and it can stop something.

out of band

Sitting beside the traffic path, receiving a copy. It can see and report, and it cannot stop anything.

middlebox

The standards term for any device between two hosts that does more than forward.

forwarding

Moving a frame towards its destination. What switches and routers do.

proxy

Something that makes a connection on your behalf, so the far end talks to it rather than to you.

broadcast domain

The set of machines a broadcast frame reaches.

What breaks without this

You unplug the wrong thing. The example above is real, and the answer depends entirely on which box is in the path rather than which one has the most alarming name.

You buy a device that cannot do what you needed. A switch cannot filter on an IP address. Nothing is broken; it never reads that far.

You misread an incident. “The IDS caught it” and “the IPS stopped it” describe different outcomes, and the difference is where the box was plugged in.

How far does it read

Take one frame, the same shape as the one in the previous topic, and ask how much of it each device actually opens.

Two consequences fall straight out of that picture, and both are examinable.

Reading further costs more and buys more specific decisions. A switch forwards in microseconds because it barely looks. A proxy can make a decision a switch could not express, such as allowing one URL on a site and refusing another, and it pays in latency and in state it has to keep.

A device cannot act on what it never reads. This is the sentence that answers the cupboard question. A switch cannot block a machine from the internet by IP address, because it never opens the IP header. Asking it to is not a configuration problem.

If you already work on networks: what the standards call these, and the one that admits the whole category is awkward

The IETF has a word for most of the devices on this page, and a document complaining about them. RFC 3234 defines a middlebox as “any intermediary device performing functions other than the normal, standard functions of an IP router on the datagram path between a source host and destination host”, then catalogues twenty-two kinds and works through what each one breaks.

The complaint is worth understanding because it explains a category of fault you will meet. The internet was designed so that the network forwards and the endpoints do everything else, which is what makes end to end checksums and end to end encryption meaningful. A middlebox is by definition something that violates that, and RFC 3234 is candid that this introduces new failure modes: a device that holds state can lose it, and a device that rewrites packets can be wrong in ways neither endpoint can see or fix.

By contrast, a router’s job is specified rather than complained about. RFC 1812 lists what an IPv4 router must do, and it is longer than most people expect, covering forwarding, TTL handling, ICMP generation, and how to behave when a packet is too large. Bridging is specified separately, by IEEE rather than the IETF, in 802.1D.

That split explains the vocabulary you will meet in vendor documentation. Routing and bridging are standardised behaviours with documents behind them. Load balancing, deep inspection and application filtering are product categories, so what any two vendors mean by them can differ, and the exam stays vendor-neutral precisely because it cannot rely on them agreeing.

The two that forward

These are the only devices here whose whole job is moving traffic onward.

A switch connects machines on one network. It reads the destination MAC address, looks it up in a table it built by watching traffic, and sends the frame out of one port. It never opens the IP header, which is why it can forward protocols it has never heard of and why it cannot make any decision based on an IP address.

A router connects different networks. It reads the IP header, decides which interface that network is reachable through, and builds a new frame around the same packet, which is the rewriting topic 02 captured on both sides of a router.

The distinction people actually need is what each one contains. A switch does not separate broadcast domains and a router does. A broadcast sent by any machine on a switch reaches every other machine on that switch. Cross a router and it stops. That single fact is behind VLANs, behind most network design, and behind a lot of performance problems in flat networks.

Hubs belong to history and appear here only because the exam may name one. A hub reads nothing, repeats every signal out of every other port, and makes all its ports share one collision domain. Switches replaced them and the reason is in the diagram: a hub cannot even read a destination address, so it cannot forward anything anywhere in particular.

If you already work on networks: counting collision and broadcast domains, which is a question you will be asked

Two domains, two different devices drawing the boundary, and exam questions that hand you a diagram and ask for both counts.

A collision domain is a set of ports whose traffic can interfere with each other. On a hub every port is in the same one, because a hub is an electrical repeater and two machines transmitting at once produce a collision. A switch gives every port its own, because it buffers a frame and forwards it rather than repeating a signal. So a five-port switch has five collision domains and a five-port hub has one.

A broadcast domain is a set of machines that receive each other’s broadcasts. A switch does not divide them, however many ports it has, because a broadcast is flooded out of every port. A router does divide them, because it does not forward broadcasts at all.

Counting from a diagram, then, is mechanical. Collision domains are switch ports, plus one for each hub in the picture. Broadcast domains are router interfaces, and one VLAN counts the same as one router interface, which is the point of the VLAN topics later on.

The collision half is close to a historical exercise. Every switch port in a modern network runs full duplex, transmit and receive on separate pairs, and a full duplex link cannot have a collision at all. The counting still gets asked, and the honest framing is that you are counting a thing that mostly stopped happening when hubs disappeared.

The boxes that read further

Everything else in the cupboard reads past the IP header, and they are best told apart by two questions: how deep do they read, and are they in the path.

An IDS and an IPS can run identical detection logic. The difference is the cabling. An IDS sits out of band, receiving a copy of the traffic, so it can tell you an attack happened and it cannot stop it. An IPS sits inline, so it can drop the traffic, and it can also drop traffic it should not have and take a service down on a false positive. One is a smoke alarm, the other is a sprinkler, and the trade is the same trade.

That is the answer to the incident you will eventually read: “the IDS caught it and it still succeeded” is not a failure of the IDS. It is what an IDS is.

A proxy is defined by who the far end thinks it is talking to. A forward proxy makes requests on behalf of clients, so the websites see the proxy rather than the staff. A reverse proxy sits in front of servers, so the clients see it rather than the servers. Same mechanism, opposite direction, and the words describe which side is being hidden.

A load balancer is sold at two depths, which is why its layer number keeps changing. At layer 4 it chooses a server from the address and port, which is fast and knows nothing about the request. At layer 7 it reads the HTTP request and can send /images to one pool and /api to another. The exam names both, and the deciding question is the one this whole topic runs on: how far did it read.

Two more that store rather than forward. NAS is storage that speaks file protocols over the ordinary network, so a machine mounts a share. SAN is storage that presents raw block devices over a network usually built for that purpose, so a machine sees what looks like a local disk. File against block is the distinction to keep.

You will also meet UTM, unified threat management, which is one box combining firewall, intrusion prevention, content filtering and usually antivirus. It is a packaging decision rather than a new capability, and it is the last thing in CompTIA’s acronym list that has no other home in this track.

If you already work on networks: why placement, not capability, is what you are usually buying

Every device in the table above can be bought as a physical box, run as a virtual machine, or consumed as a service, and the capability is largely the same in all three. What changes is where it sits, and that is what determines what it can do.

The clearest case is the IDS and IPS pair, because it is the same software. Give it a mirrored port and it is a detector. Put it in the path and it is a preventer. Nothing about the detection changed.

The same reasoning runs through the rest. A firewall that is not in the path filters nothing. A proxy nobody is configured to use is an idle server. A load balancer with a route around it is decoration. When a design review asks “is this inline”, it is asking the only question that decides whether the box can act.

There is a reliability consequence worth carrying. Anything inline is a potential single point of failure, which is why inline devices are usually deployed in pairs and why some ship with a hardware bypass that shorts the two ports together when the box loses power. An out of band device that dies stops telling you things. An inline device that dies can stop the business.

The ones that are jobs, not boxes

Four things the objective lists alongside the devices are not devices at all, and the exam expects you to know the difference.

The pattern is worth naming. Each of these is a job performed by devices that also do other things, or in TTL’s case a number inside a packet. None is a box you could point at in the cupboard.

Grouping these correctly is worth a mark, and more usefully it stops you looking for a QoS appliance that does not exist.

If you already work on networks: why enabling QoS often changes nothing, and why that is the correct outcome

QoS is the one in that table that generates support tickets, because what it does is easy to state and easy to misread.

Quality of service decides which traffic is served first when there is more traffic than the link can carry. On a link that is not full there is no queue to reorder, every packet leaves as it arrives, and the configuration has no effect that anyone can measure. So “we turned on QoS and the calls still break up” is usually not a QoS fault. It is evidence that the problem was never contention on that link, and the next thing to look at is the path, the wireless, or the far end.

The second thing that surprises people is scope. QoS markings live in the packet header, and they mean whatever each device along the path has been configured to think they mean. A device that has not been told to honour a marking will ignore it, and most providers rewrite or clear markings at the boundary of their network. Marking traffic on your own switch does not make anybody else treat it as important. The policy has to exist on every hop that might queue, which is why QoS is a design decision rather than a setting.

The same test applies to the other three. A VPN needs somewhere to terminate. A CDN needs the DNS answer to point at it. TTL is not configurable policy at all, it is a counter. Ask where each one is enforced, and the ones that are jobs stop blurring into the ones that are boxes.

Physical or virtual, and what actually changes

Every appliance here also exists as software. A firewall can be a rack unit or a virtual machine; a load balancer can be a service in a cloud provider’s console.

What stays the same is the reading depth, which is the whole basis of this topic. A virtual firewall reads exactly as far as a physical one.

What changes is worth knowing in three places. Throughput becomes a property of the host and its network rather than of purpose built silicon. Placement becomes a configuration decision rather than a cabling one, which is faster to change and easier to get silently wrong. And failure domains move: ten virtual appliances on one host share that host’s fate, in a way ten separate boxes did not.

If you already work on networks: the split that explains the difference, and the vocabulary it gives you

Every forwarding device does two separate things, and they are worth naming because the rest of this track uses the names.

The data plane is the part that moves a frame or packet from one port to another. It runs for every packet, so it has to be fast and it has to be uninteresting. The control plane is the part that works out what the data plane should do: learning MAC addresses, running spanning tree, exchanging routes with neighbours. It runs occasionally and it is allowed to be slow, because it is producing tables rather than moving traffic.

In a physical switch these live in different hardware. The data plane is a dedicated chip that forwards at the speed of the ports, and the control plane is an ordinary processor on the same board. In a virtual appliance both are the same CPU, and every forwarded packet competes with the work of deciding how to forward it. That is the honest version of the throughput sentence above.

The split explains a limit that catches people out. A hardware forwarding table is physical memory of a fixed size, so a switch holds a stated number of MAC addresses and no more. Fill it and the switch cannot learn any others, which is a real failure mode and also a real attack, and topic 56 covers what happens next. Software forwarding has no equivalent hard edge, and instead degrades as the table grows.

It also gives you a compact way to describe things that arrive later. Software defined networking, in topic 28, is control planes lifted off individual boxes and centralised. A router that stays up while its routing protocol restarts is a data plane surviving a control plane failure. Once you have the two words, a surprising amount of network design turns out to be arguments about where the control plane should live.

Prove it

There is nothing to run here. Every device in this topic is a category rather than a command, so the evidence is in the documents that define them, and each of these answers a question the marketing does not.

One question to take with you, because it is the one the documents answer and the datasheets do not: for any box you are shown, how far into the frame does it read, and is it in the traffic path. Those two answers place it in the table above without knowing the vendor.

What trips people up

1. Thinking a switch can filter by IP address

It never reads the IP header. A device that does that is a router, a layer 3 switch, or a firewall. Buying a switch and expecting IP filtering is a category error rather than a configuration problem.

2. Expecting an IDS to have stopped something

An IDS is out of band and sees a copy. It reports. If you needed it stopped, the thing you needed was inline, and that is an IPS.

3. Treating layer 4 and layer 7 load balancing as the same product

They make different decisions from different information. A layer 4 balancer cannot route on a URL because it never reads one.

4. Looking for a VPN box or a QoS box

Both are functions. They run on devices that also do other things, and a network diagram with a box labelled QoS on it has been drawn by somebody guessing.

5. Assuming virtual means less capable

The reading depth is identical. What differs is throughput, how placement is changed, and what fails together.

6. Reading a hub as an old switch

A hub reads nothing at all and repeats signals. It does not learn addresses and it does not forward selectively. The exam may still name one.

Work it through

Back to the cupboard. You are told a machine at 10.0.5.20 must not reach the internet, and today it can. You may not touch the machine itself.

The six boxes are a switch, a router, a firewall, a wireless access point, a device labelled IDS, and a NAS.

Reason it out before reading on.

Eliminate on reading depth first, because it is quick. The switch never reads an IP address, so it cannot act on 10.0.5.20 as such. The NAS is storage and is not in the path to anywhere. The access point is a way onto the network rather than a way out of it, and blocking there would stop that machine reaching everything, not the internet specifically.

That leaves three, and one of them disqualifies itself. The IDS is out of band by definition, so whatever it can see, it cannot block.

Now choose between the router and the firewall, and notice they would both work. The router is the path to the internet, so a rule there can stop the traffic. The firewall is built for exactly this and will express the rule more precisely and log it.

The reason to pick the firewall is not capability. It is that a filtering rule on the router is a change to the thing that makes the network work, and a mistake there affects everything. The firewall’s job is already to allow and deny, so the change sits where the blast radius is smallest.

One thing to check before touching anything. The box labelled IDS may be an IPS that somebody labelled loosely, in which case it is inline and is a candidate after all. The way to tell is not the label, it is whether traffic passes through it or past it. Which is the question this topic has been asking throughout.

Try it

Optional, and none of it needs equipment.

1. Find any network diagram, from your workplace or from a vendor’s documentation. For each box on it, write down how far into a frame it reads and whether it is in the traffic path.
2. Open RFC 3234 and read the list of middlebox types in section 2. Count how many of them you had a name for already.
3. Take one device you use daily, a home router, and list every job in this topic that it performs. It will be more than three.
4. Look up any firewall product’s datasheet and decide, from what it claims, what depth it reads to. Then check whether the datasheet says so plainly or leaves you to infer it.

Verification step. You have it when somebody can describe a box to you without naming it, saying only what it reads and where it sits, and you can say what it must be.

Check yourself

What is the single question that separates a switch, a router and a proxy?

How far into the frame each one reads before it acts.

A switch reads the destination MAC address and stops. A router opens the IP header. A proxy reads all the way into the data, which is what lets it make decisions about a request rather than about a packet.

Reading further costs latency and state, and buys decisions the shallower device could not express.

An IDS and an IPS are running identical detection software. What is different?

Where they are plugged in.

The IDS is out of band and receives a copy of the traffic, so it can alert and cannot block. The IPS is inline, so everything passes through it and it can drop what it does not like.

The cost of being inline is that a false positive takes down real traffic, and that the device is now a point of failure in the path.

Why can a switch not block a machine by IP address?

Because it never reads the IP header. It makes its forwarding decision from the destination MAC address and stops there.

That is a design choice rather than a shortcoming, and it is why a switch can forward protocols it has never heard of. A device that filters on an IP address is a router, a layer 3 switch, or a firewall.

Which of these are devices and which are functions: VPN, QoS, firewall, CDN, TTL, load balancer?

Devices: firewall and load balancer, though both also exist as software.

Functions or fields: VPN is an encrypted tunnel that terminates on some other device, QoS is a feature configured on switches and routers, TTL is a field in the IP header, and a CDN is a service made of servers somebody else operates.

Looking for a QoS appliance is the practical consequence of getting this wrong.

What is the difference between NAS and SAN?

NAS presents files over the ordinary network, so a machine mounts a share and speaks a file protocol.

SAN presents raw block storage, usually over a network built for that purpose, so a machine sees something that behaves like a local disk and puts its own filesystem on it.

File against block is the distinction worth keeping.

A device is described to you as inline, reading to layer 7, in front of a group of web servers. What is it?

Either a reverse proxy or a layer 7 load balancer, and in practice frequently both, because the same product usually does both jobs.

In front of servers rather than in front of clients makes it reverse. Reading to layer 7 means it can make decisions from the request itself, such as sending one path to one pool of servers.

References

Pictures. A freely licensed file from Wikimedia Commons, downloaded and served from this site rather than linked across to somebody else’s server.

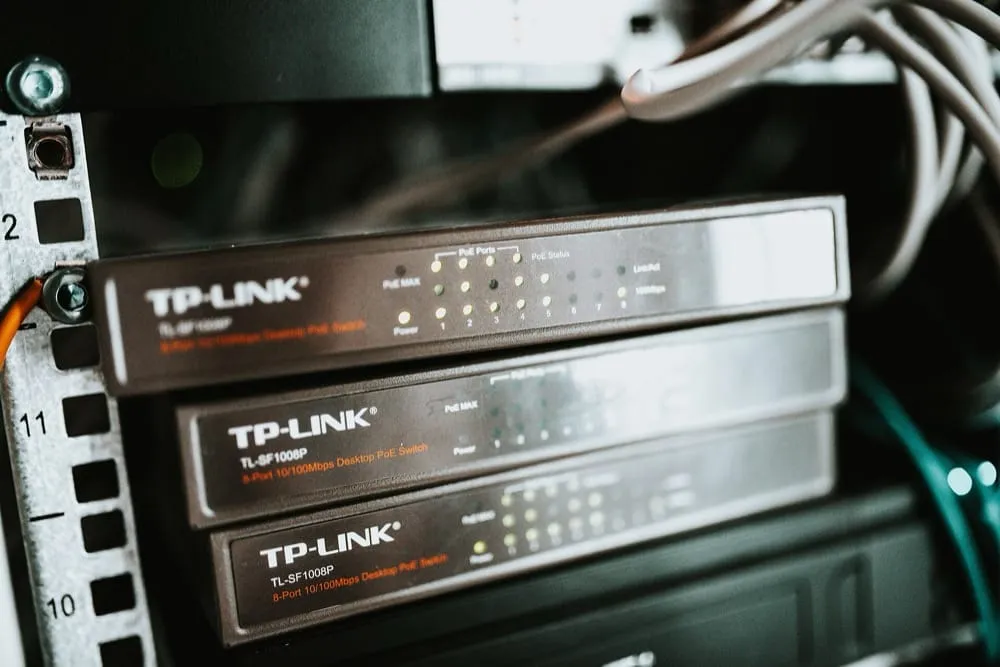

• Network switches arranged in a server rack by Shixart1985, CC BY 2.0.
